TC-06-1500
TC
| Quantity: | |
|---|---|
Product Description

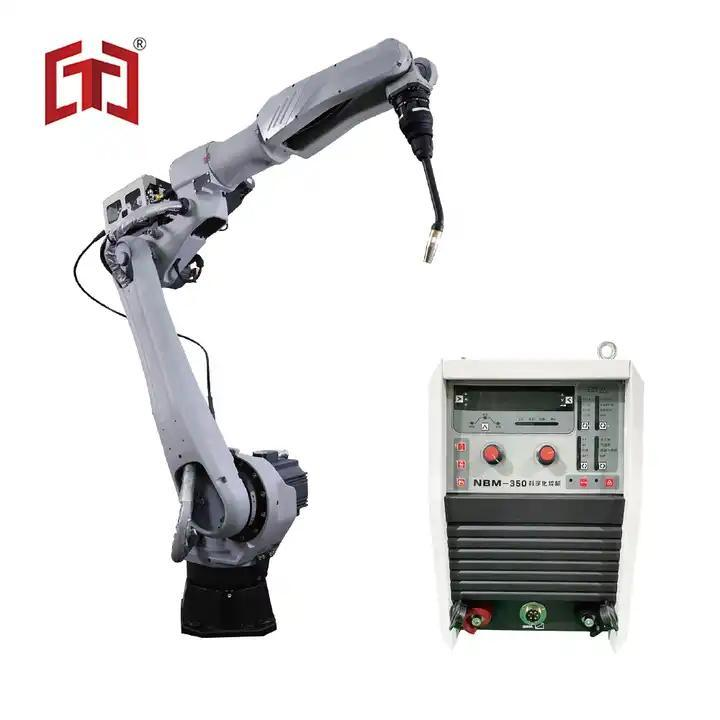

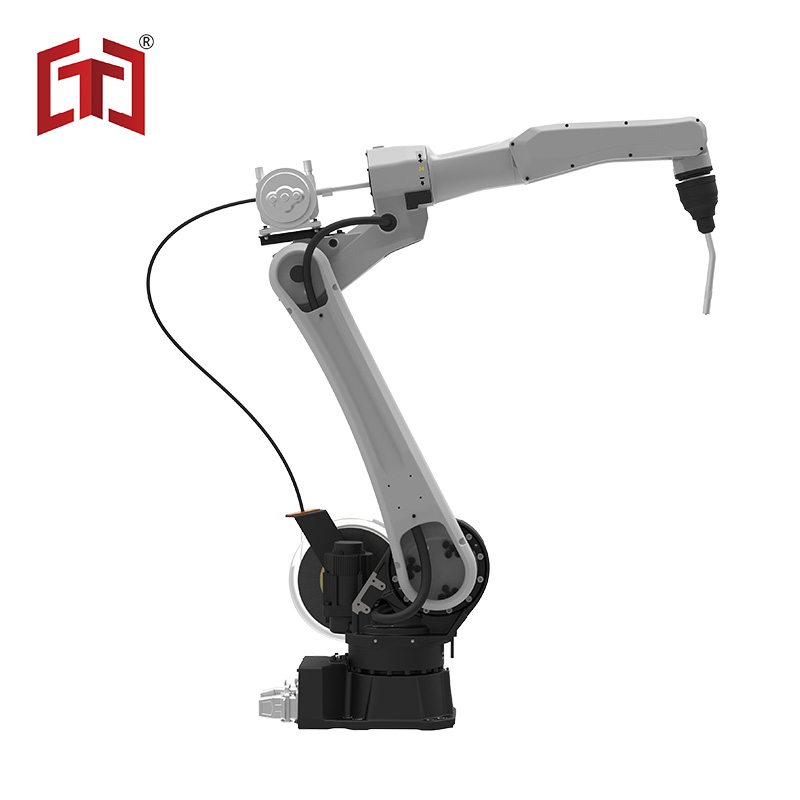

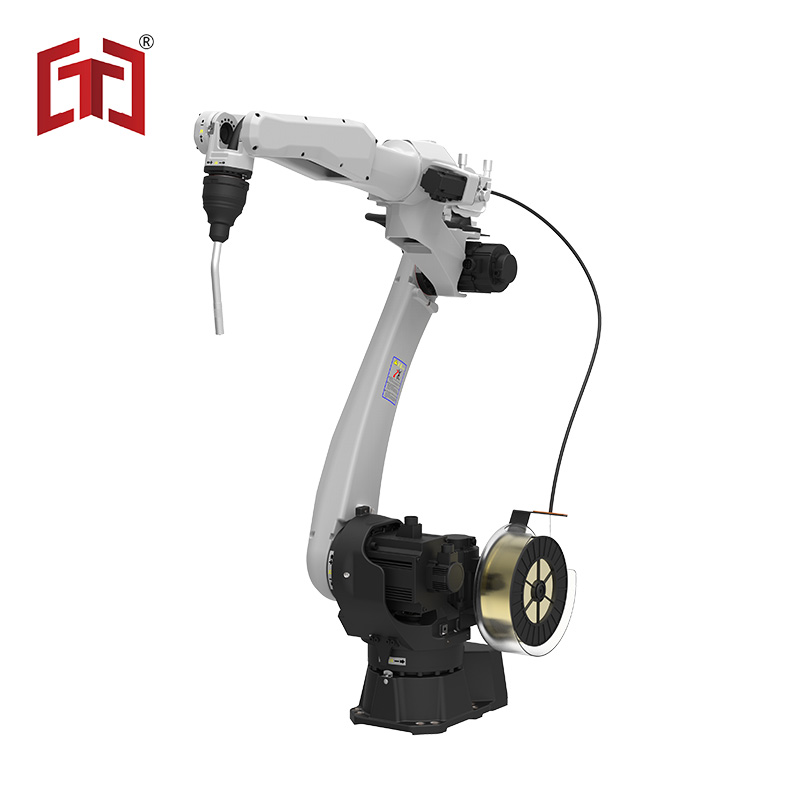

The 6 axis welding robot is consist of mechanical arm+control cabinet teaching pendant+air cooling gun

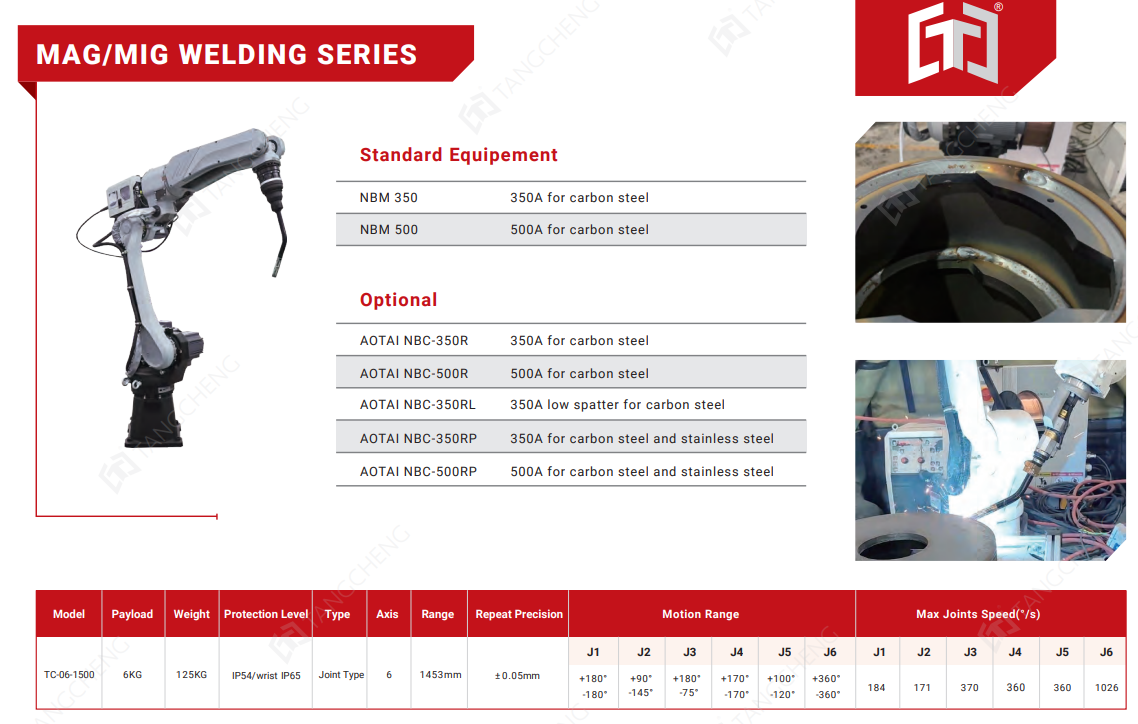

Product technical parameters
| Model | TC-06-1500 | |
| Payload | 6KG | |
| Weight | 125KG | |
| Protection Level | IP54/wrist IP65 | |
| Type | Joint Type | |
| Axis | 6 | |
| Range | 1453mm | |
| Repeat Precision | +0.05mm | |
| Motion Range | J1 | +180° -180° |
| J2 | +90° -145° | |
| J3 | +180° -75° | |
| J4 | +170 -170° | |
| J5 | +100° -120° | |
| J6 | +360° -360° | |
| Max Joints Speed(°/s) | J1 | 184 |
| J2 | 171 | |
| J3 | 370 | |
| J4 | 360 | |
| J5 | 360 | |
| J6 | 1026 | |

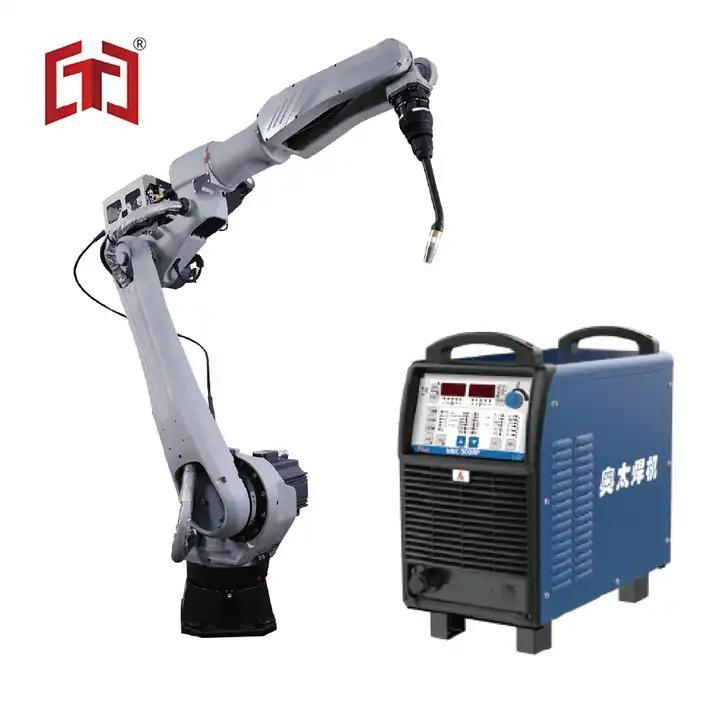

Product accessories
| Standard Equipement | |
| NBM 350 | 350A for carbon steel |
| NBM 500 | 500A for carbon steel |
| Optional | |
| AOTAI NBC-350R | 350A for carbon steel |
| AOTAI NBC-500R | 500A for carbon steel |
| AOTAI NBC350RL | 350A low spatter for carbon steel |
| AOTAI NBC-35ORP | 350A for carbon steel and stainless steel |
| AOTAI NBC-500RP | 500A for carbon steel and stainless steel |
