Portable Cutting Machine for Flame And Plasma Cutting with LGK-120HD Cutting Source

The application of the cnc plasma cutting machine:

Plasma cutting machine (also known as "CNC plasma cutting machine") is mainly used in all kinds of metal plates (such as: carbon steel, stainless steel, aluminum, low alloy steel, aluminum alloy), but also in the complex pattern of the above materials Processing.

Plasma cutting has the advantages of good cutting accuracy and fast cutting speed. The cut work piece generally does not require secondary processing. Plasma cutting machines are widely used in the manufacturing of sheet metal processing, bridge construction, metallurgy and shipbuilding, electrical equipment, molds, automobiles, elevators, food machinery, engineering machinery, boiler containers, railway locomotives and other industries.

Model:
TCA-P3016-FPHY120A
Brand:
TC

Availability:

Quantity:



Inquire Add to Basket

Product Description

Main Features:

The cnc portable sheet metal cutting machine :
1. Adopt Starfire control system, it can cut arbitrary complex planar shape, high efficiency, low cost.
2. The machine can read Auto CAD format file directly and turn into cutting program with humanized human machine interface and powerful automatic programming system with material software.
3. This machine has special features of compact structure, beautiful style, light weight and convenient movement. It can cut by manual control, and also can cut automatically with stable movement and high cutting accuracy.
4. The machine adopts telescopic boom type structure, X, Y axis both adopt Aviation aluminum alloy material, high accuracy, no deformation and good appearance.

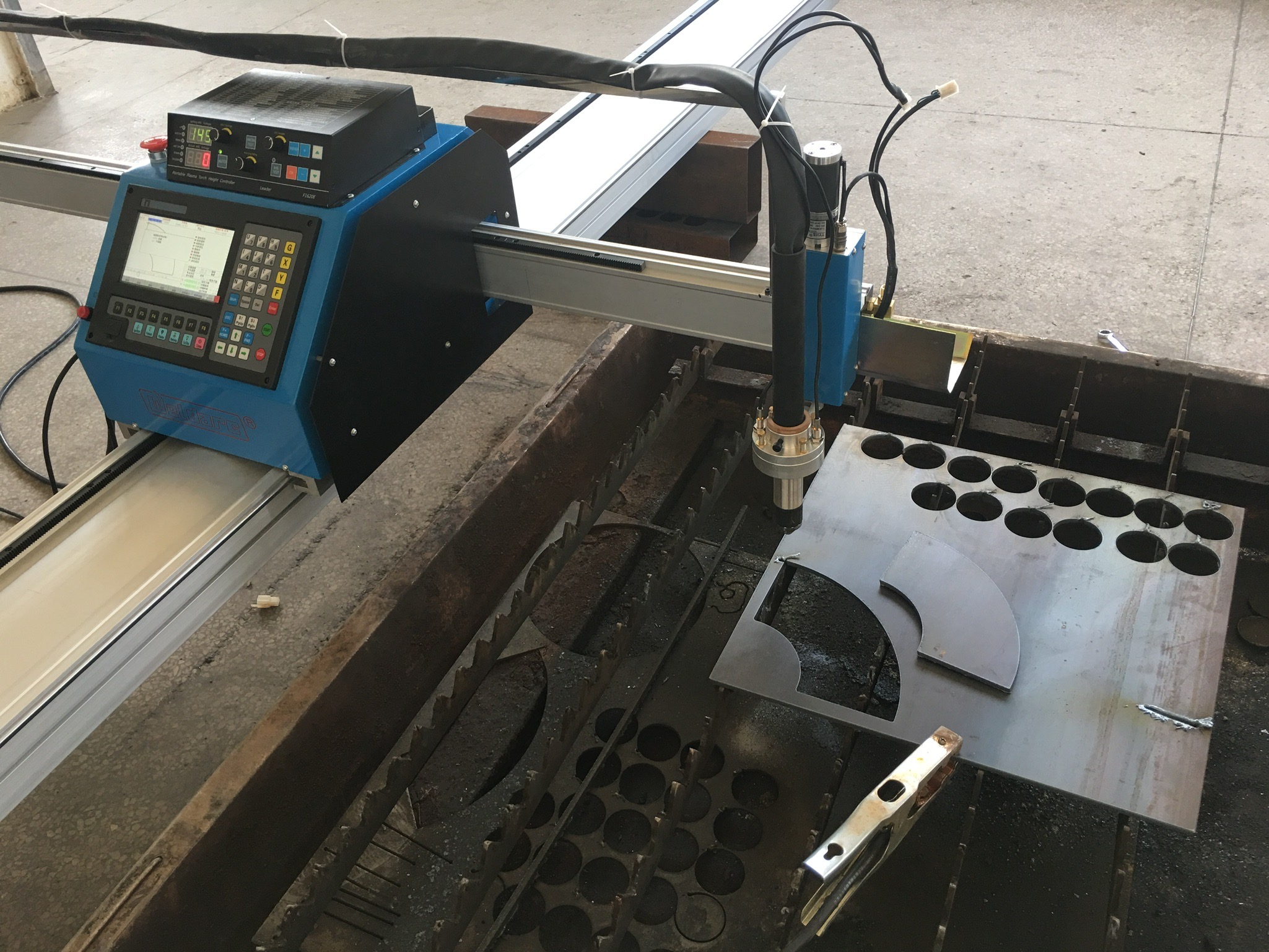

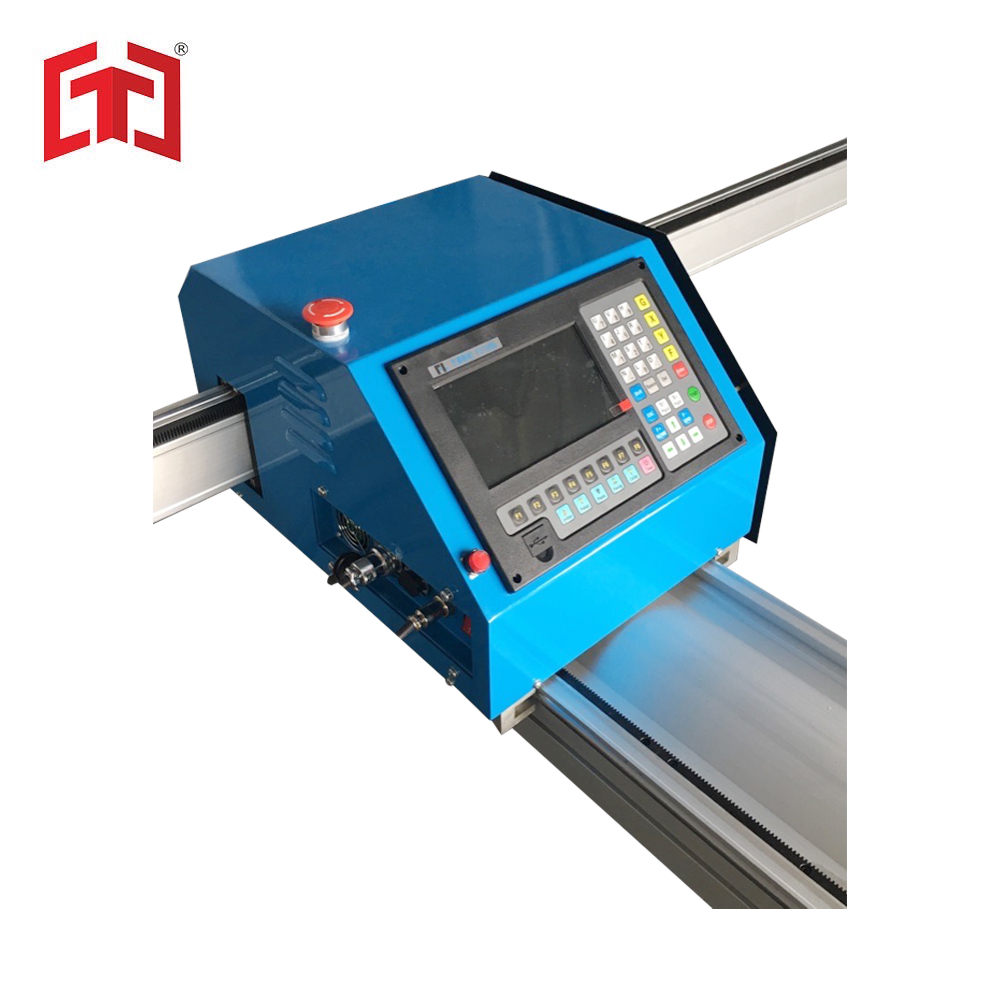

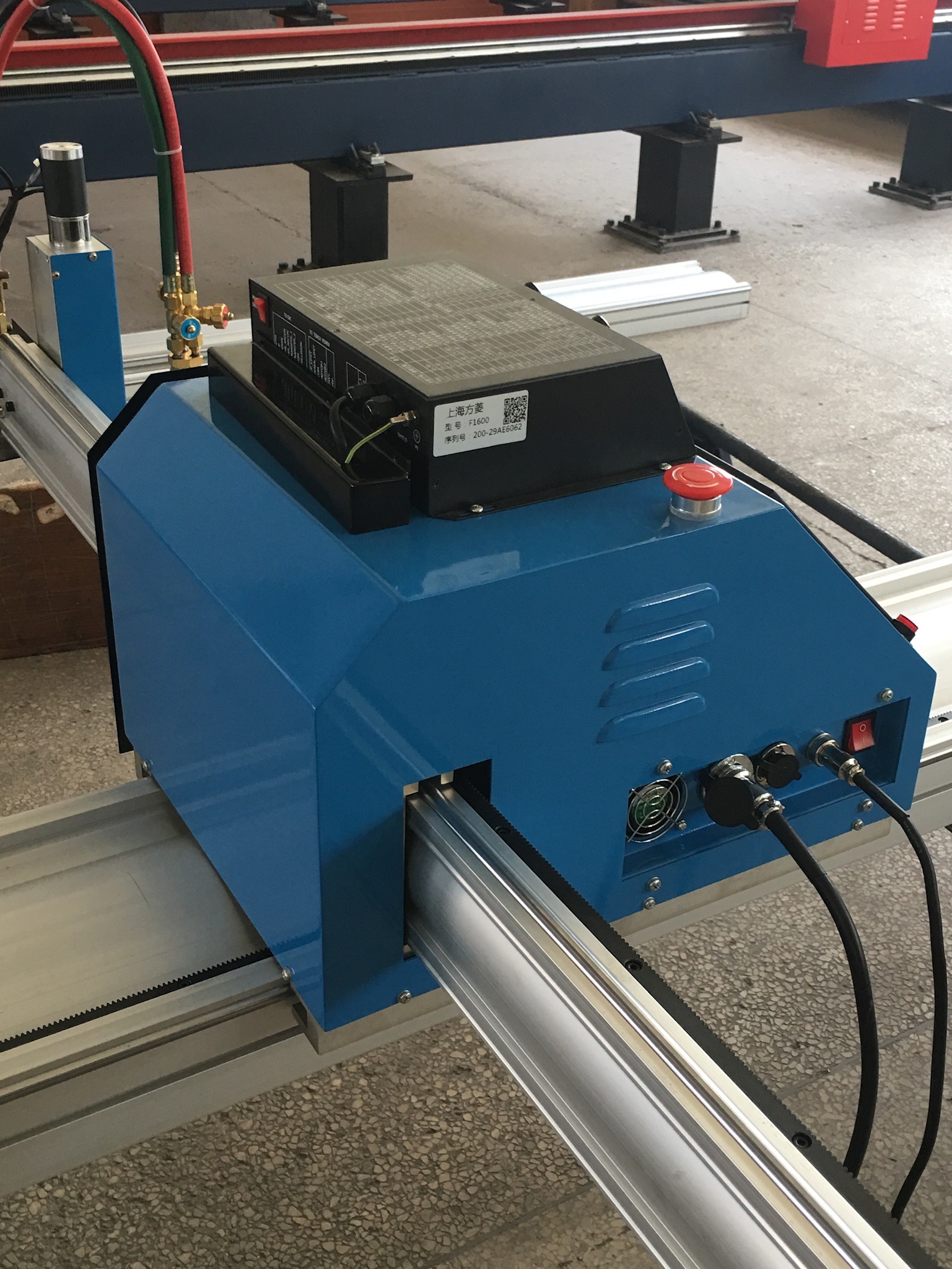

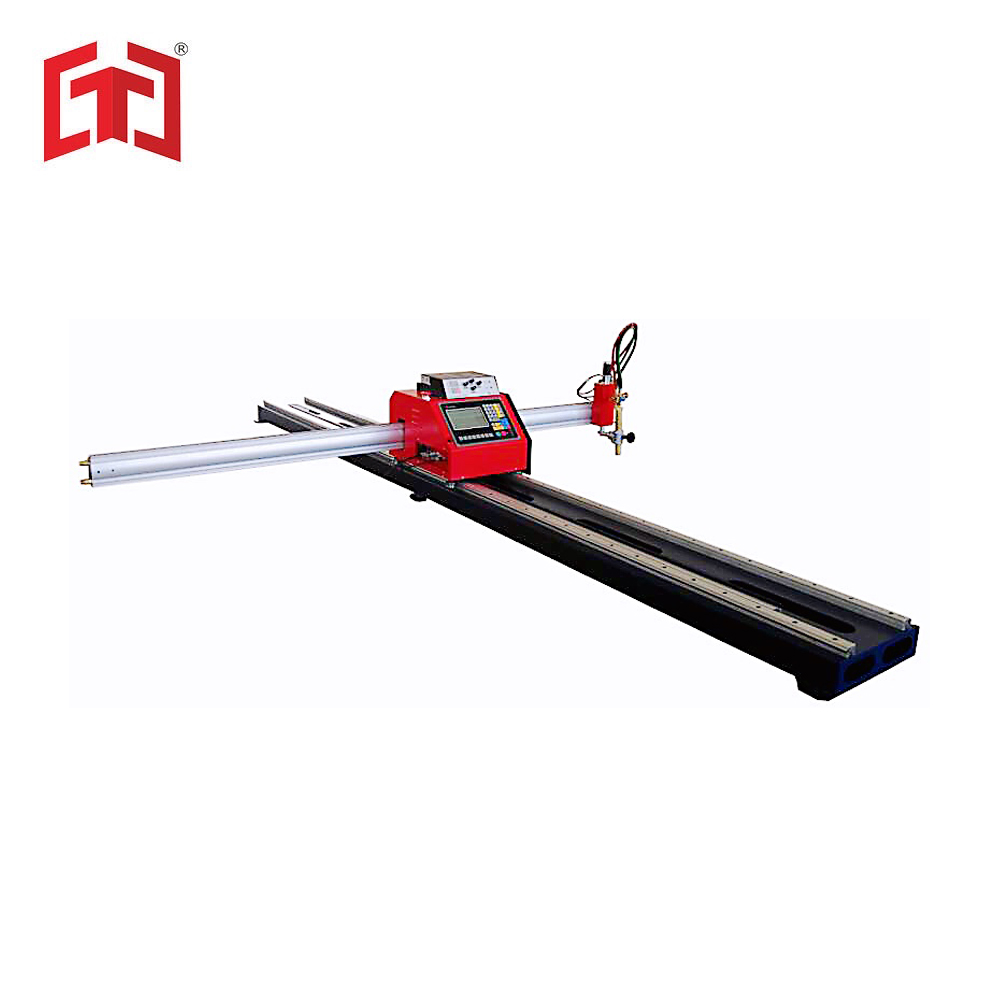

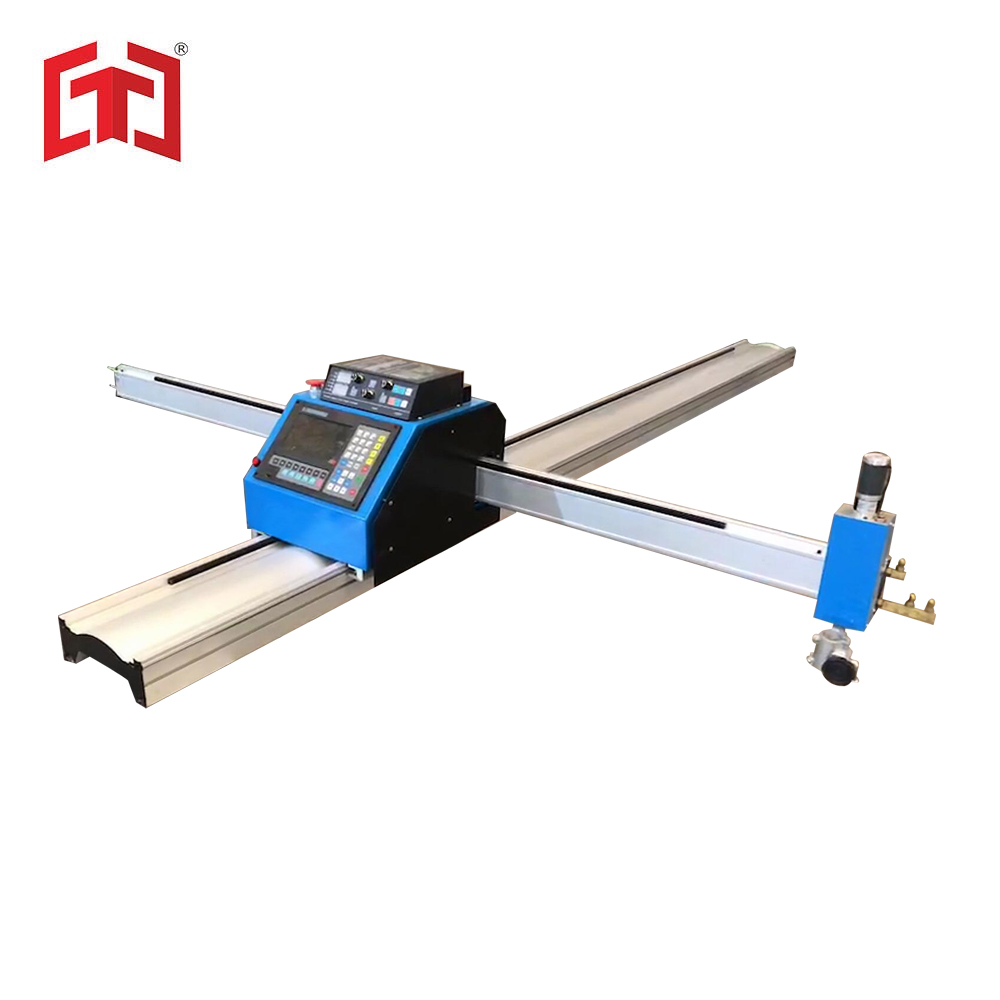

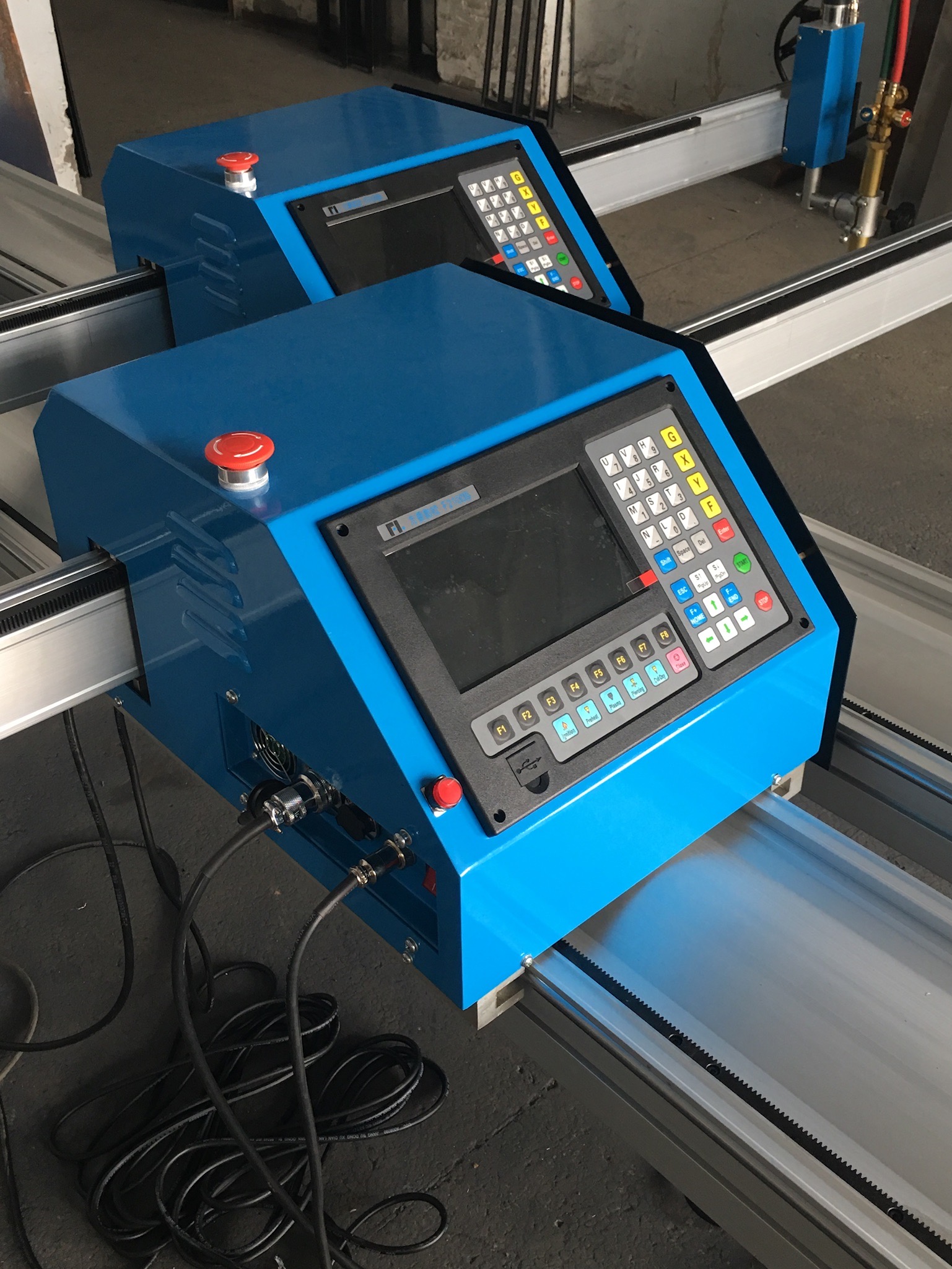

CNC3-1500F (1)

Product technical parameters

Model	CNC3-1500FPS-120
Effective cutting range(mm)	1500*3000
Cutting speed (mm/min)	50-4000(max. 4000)
Input power source of Machine body	220V AC, 50/60HZ, 160W Single phase
Flame Cutting thickness (mm)	3-200 (Oxygen with acetylene or propane)
Torch height controller	Flame, electric height adjustment(60mm)
Flame cutting gas	Oxygen with propane or acetylene
Plasma torch gas	Compressed air/N2/O2
Cutting torch	One piece flame cutting torch, one plasma torch together with the plasma power source
CNC controller system	F2100B
Motor	Leadshine Stepper motor and drive
Plasma Cutting thickness (mm)	0.3-10mm( with 63A plasma power source)
Torch height controller	F1620
Operation precision	0.2mm/m
Guide length guide width guide thickness (mm)	350027360
Nesting software	StarCam
Gas pressure (Mpa)	0.5
Cutting tool Conversion Kit	Oxygen(flame) and plasma spare parts can change easily.
