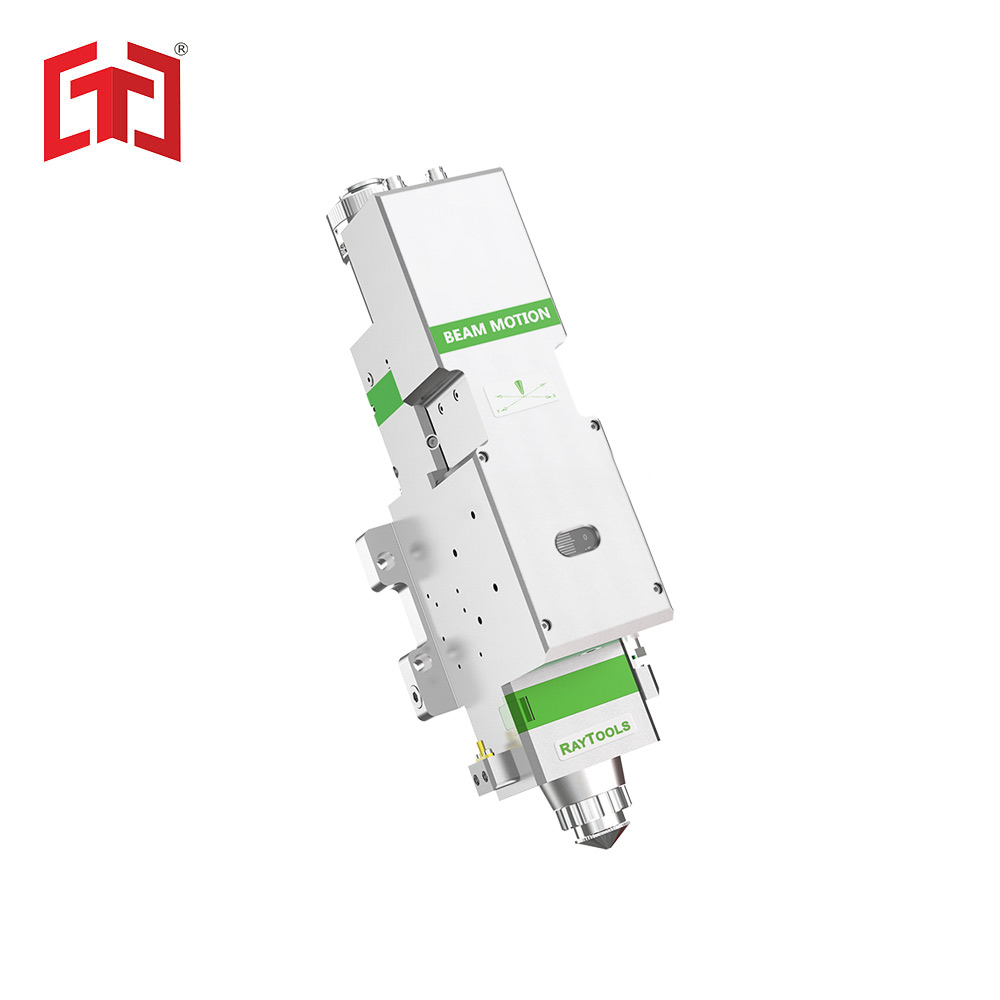

BM111
Raytools
| Quantity: | |
|---|---|
Product technical parameters
| Autofocus | |
| Range | -12mm~+10mm |
| Speed | ≤ 170mm/s |
| Acceleration | ≤ 10m/s ² |
| Accuracy | 0.05mm |

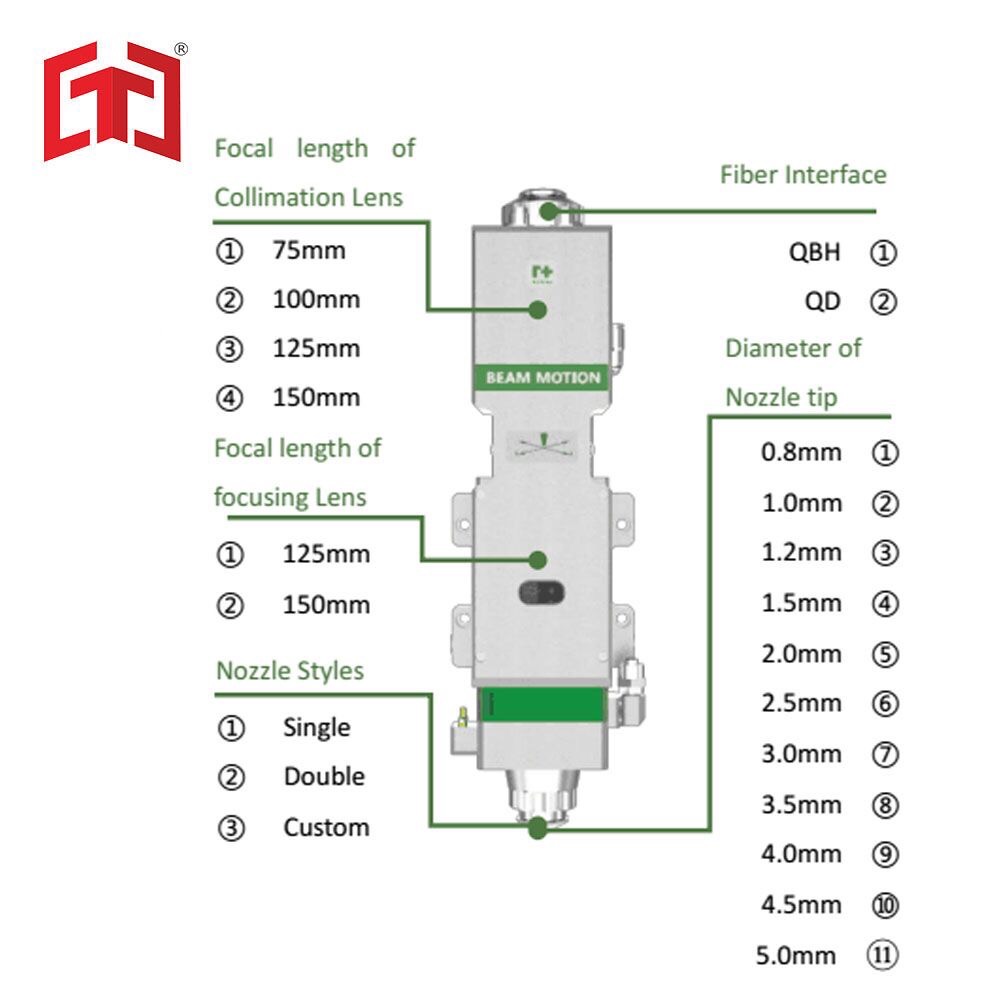

| Optical aperture: | 28mm |
| Nozzle specifications: | single-layer, double-layer, non-standard |
| Nozzle hole diameter: | 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm |
| Auxiliary gas pressure: | ≤ 30bar |
| Weight: | ~5.7kg |
Product features
1. Multiple protective lenses: 3 protective lenses, efficient protection for collimating and focusing lense
2. Automatic focusing: Automatic focusing reduces human intervention, with a focusing speed of 170mm/s and an adjustment accuracy of 0.05mm
3. Highly dustproof: IP65 level dustproof, dustproof without dead corners
4. High speed cutting: SUS304 with a thickness of 12mm, cutting speed of 0.7m/ min@3000w 12mm thick Q235 cutting speed 1.2m/ min@3000w
Product technical parameters
| Autofocus | |
| Range | -12mm~+10mm |
| Speed | ≤ 170mm/s |
| Acceleration | ≤ 10m/s ² |
| Accuracy | 0.05mm |
| Optical aperture: | 28mm |
| Nozzle specifications: | single-layer, double-layer, non-standard |
| Nozzle hole diameter: | 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm |
| Auxiliary gas pressure: | ≤ 30bar |
| Weight: | ~5.7kg |
Product features
1. Multiple protective lenses: 3 protective lenses, efficient protection for collimating and focusing lense
2. Automatic focusing: Automatic focusing reduces human intervention, with a focusing speed of 170mm/s and an adjustment accuracy of 0.05mm
3. Highly dustproof: IP65 level dustproof, dustproof without dead corners
4. High speed cutting: SUS304 with a thickness of 12mm, cutting speed of 0.7m/ min@3000w 12mm thick Q235 cutting speed 1.2m/ min@3000w
