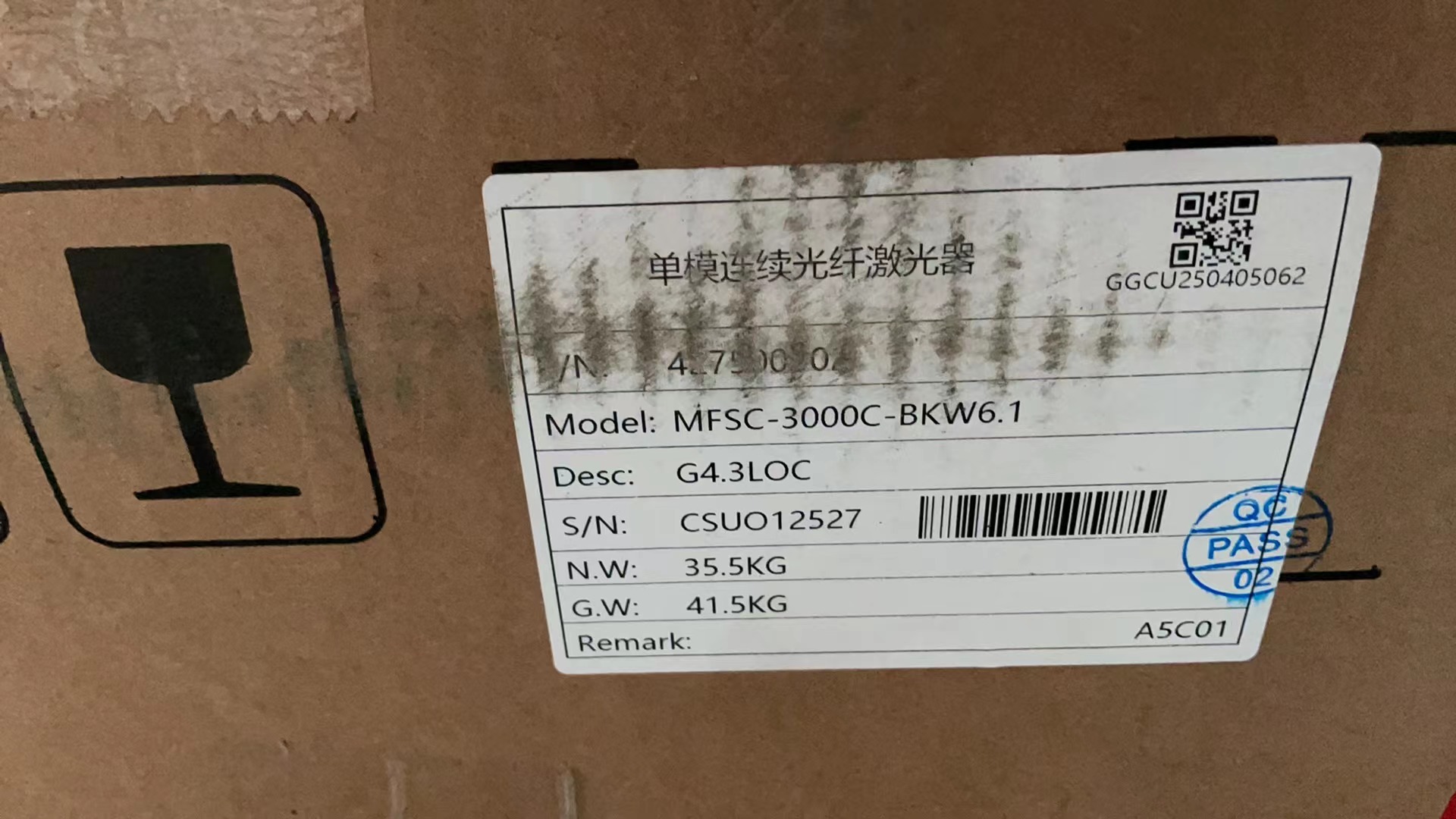

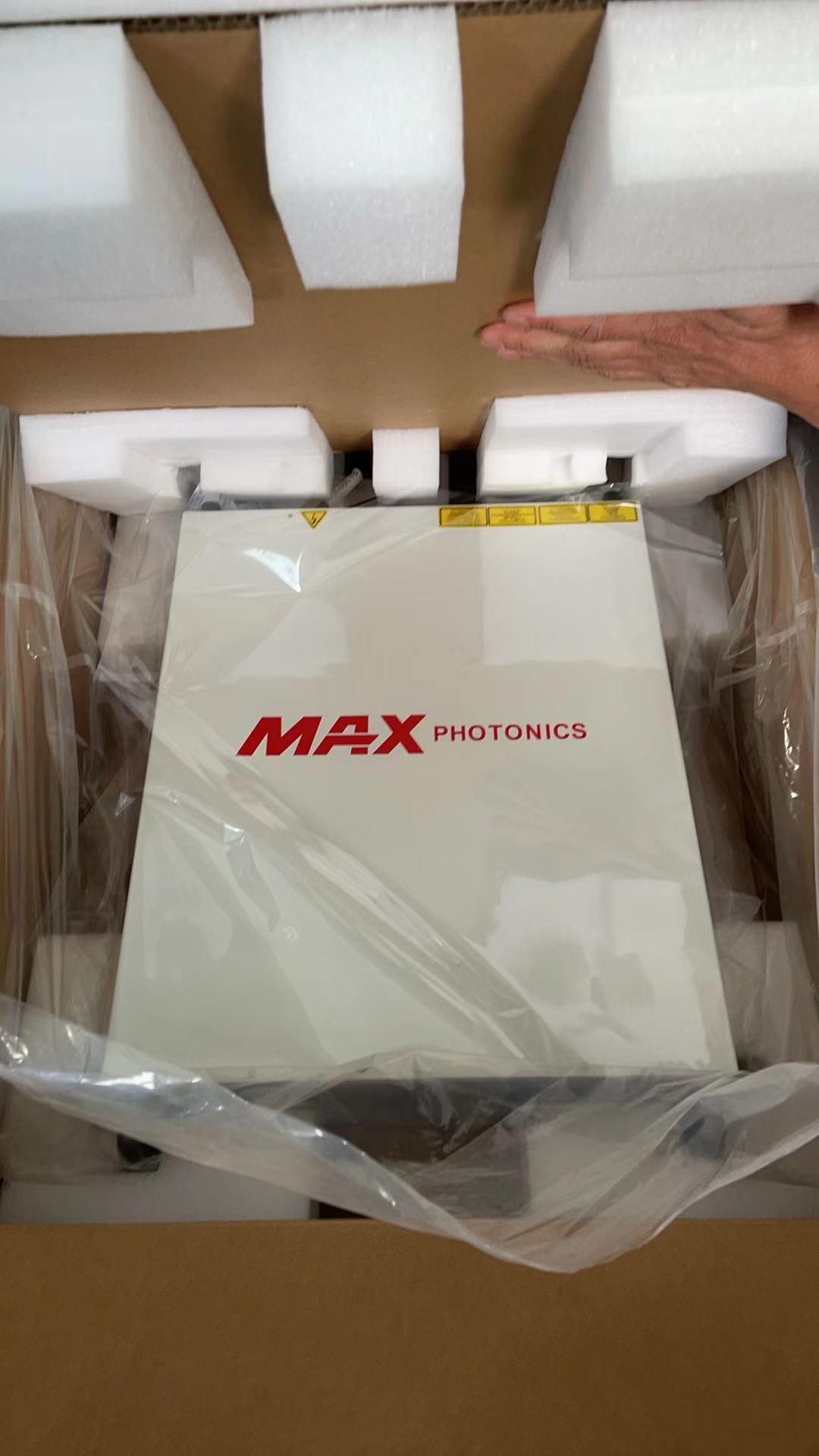

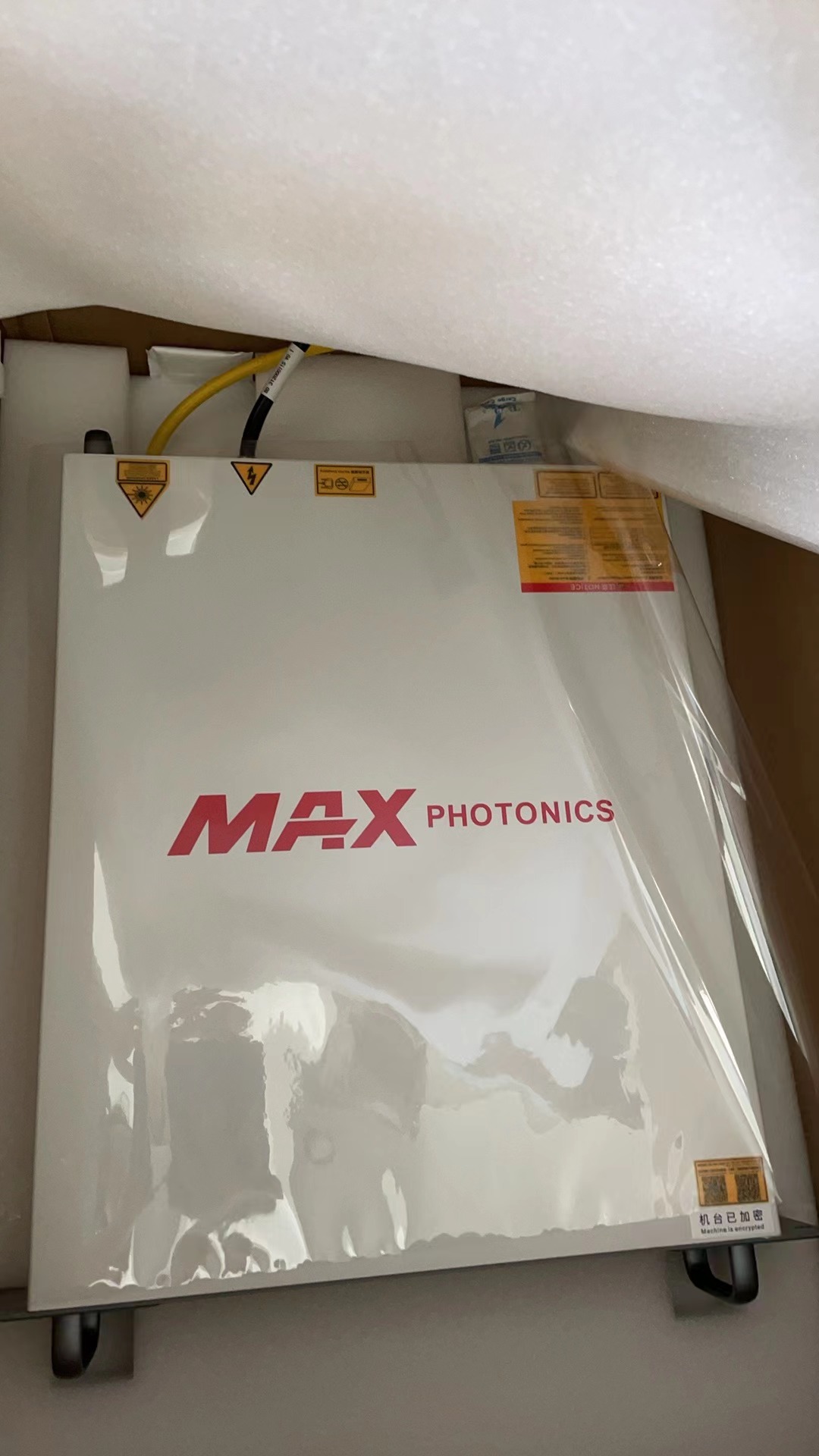

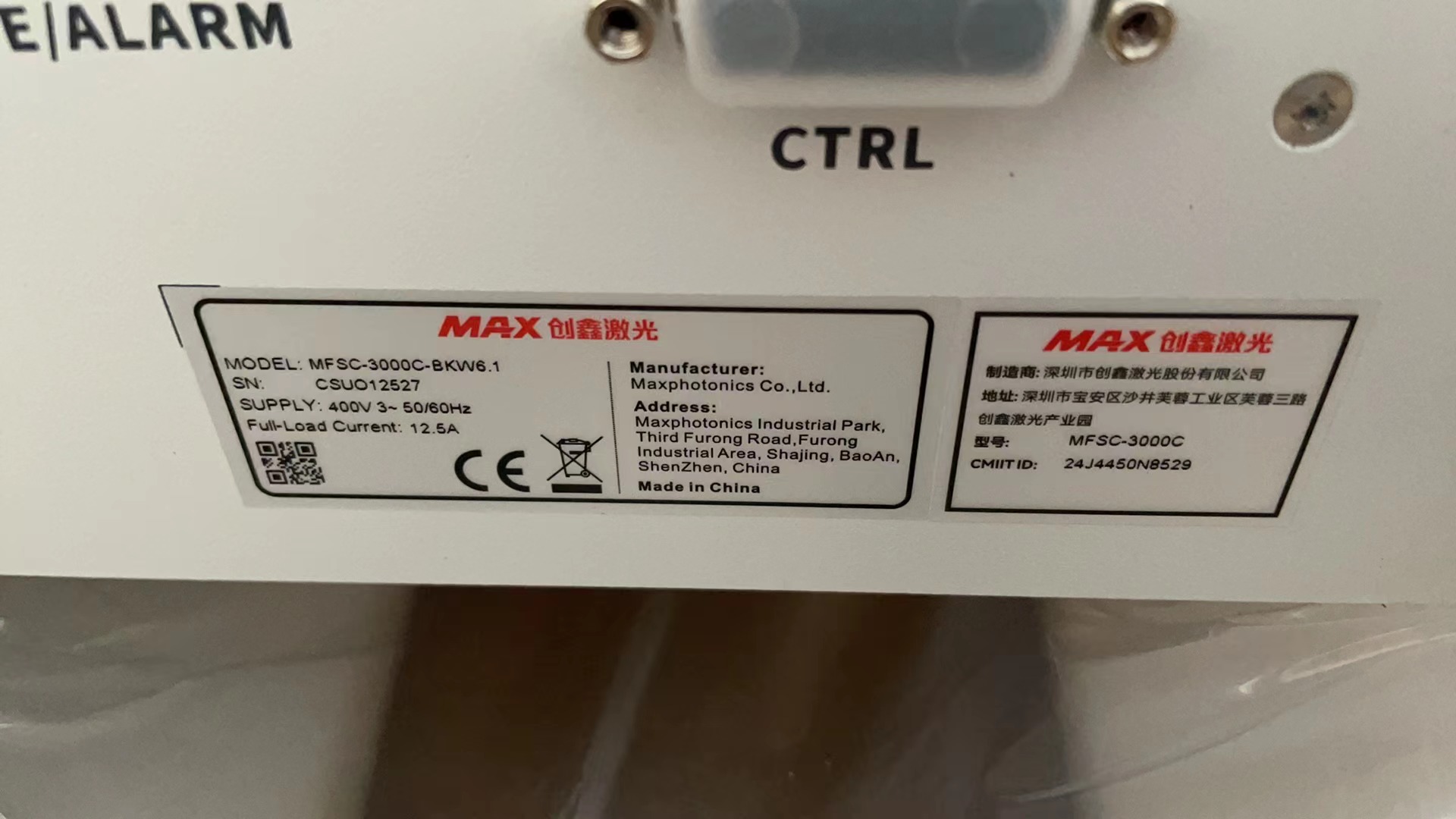

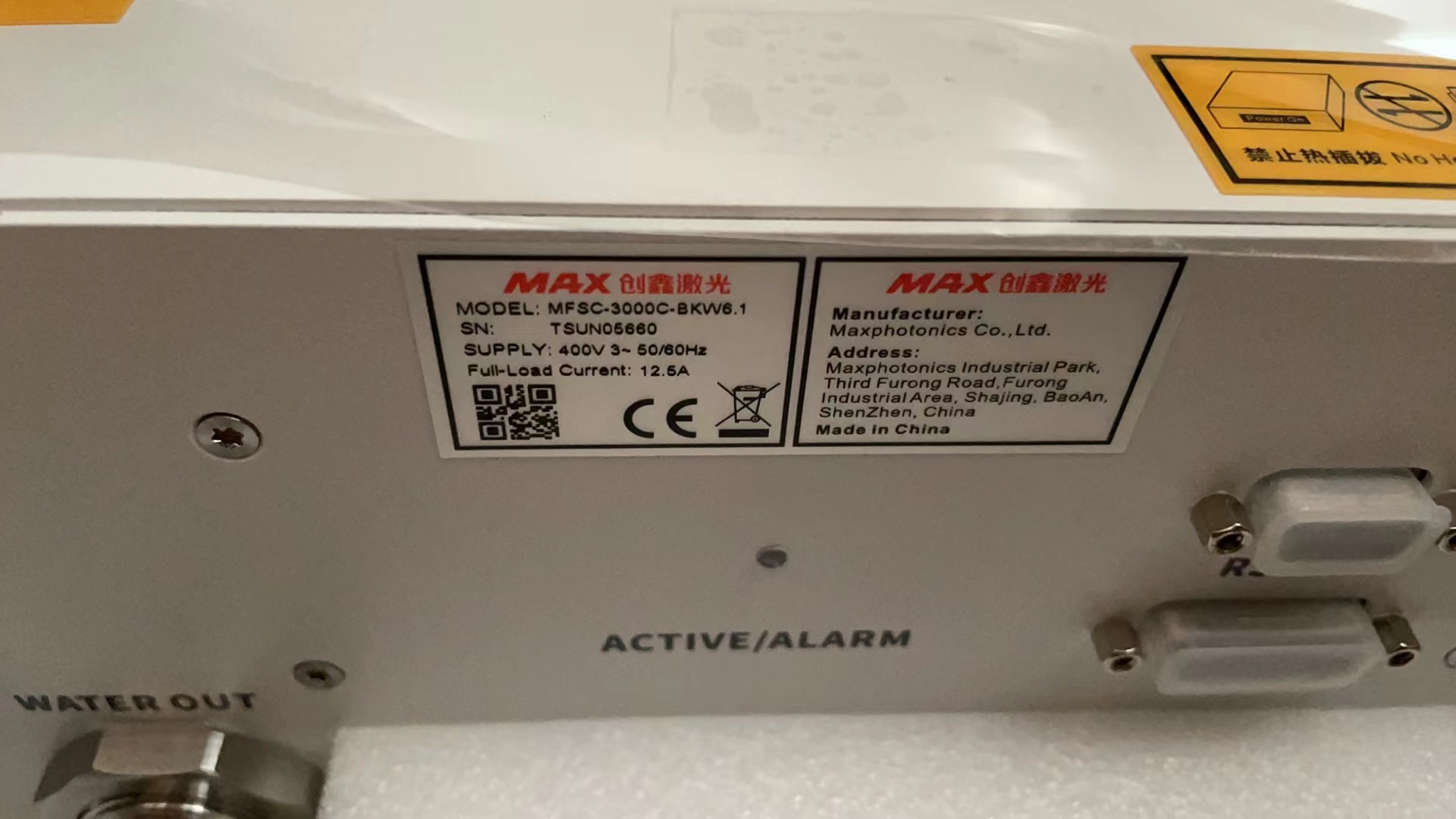

MFSC-3000C /MFSC-3000X
MAX
| Quantity: | |
|---|---|
| model | MFSC-3000X |
| OPTICAL SPECIFICATIONS | |
| Nominal Power | 3000W |
| Mode of Operation | CW/Modulated |
| Polarization | Random |
| Power Tunability | 10 to 100 % |
| Wavelength | 1080±10 nm |
| Power Stability | ±1% |
| Laser Beam Quality, BPP | 1.1 to 1.5 mm x mrad(50um OBH) |
| 2.8 to 3.6 mm x mrad(100um OBH) | |
| Modulation Frequency | <=5kHz |
| Preview Red Light Power | 200 uW |

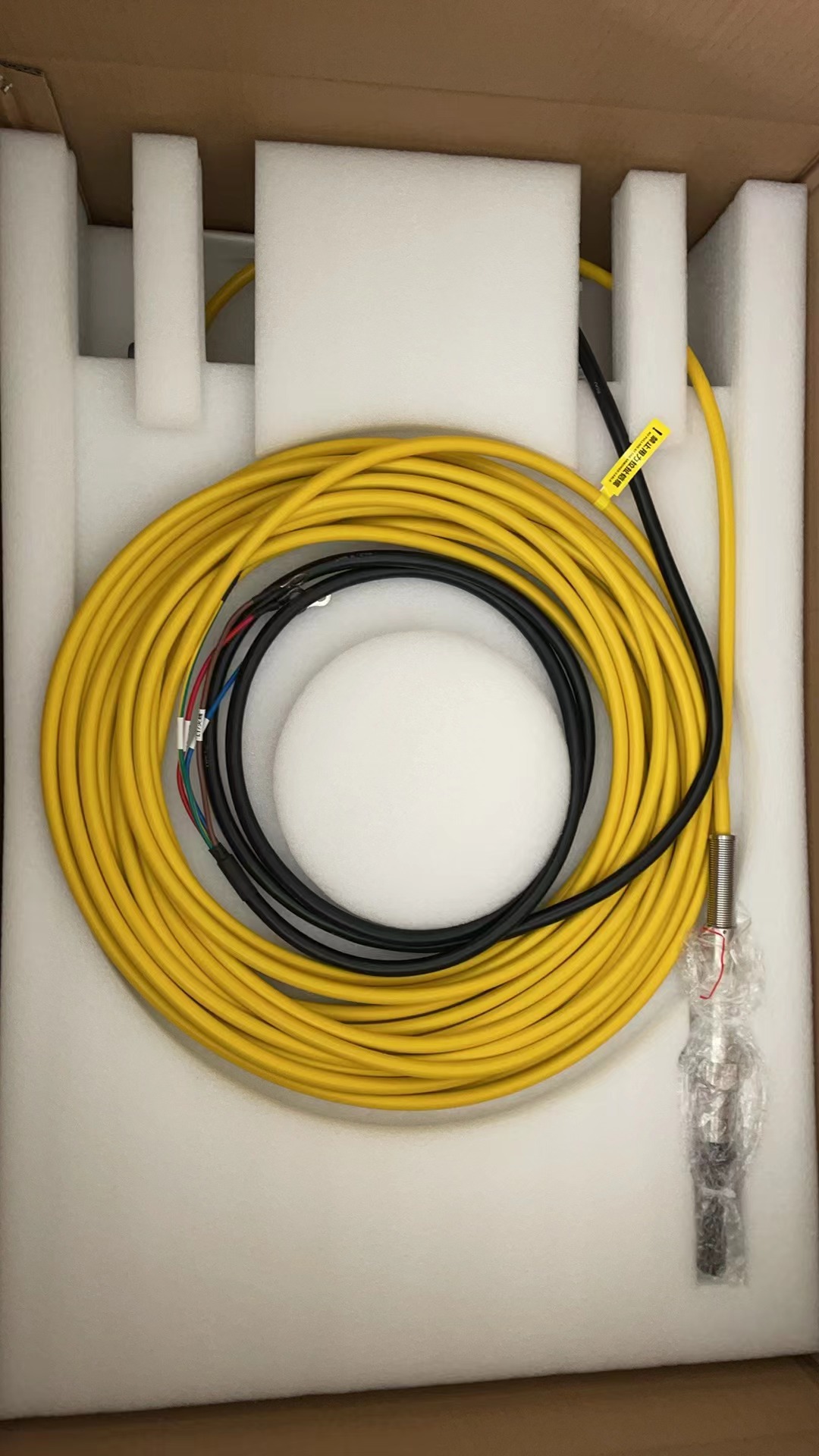

| FIBER DELIVERY SYSTEM | |
| Interface | QBH(LOC) |
| Length | 20 m standard, other lengths optional |
| Diameter | 50(100/200) pm |
| Bending Radius | 200 mm |
| ELECTRICAL RATINGS | |
| Supply Voltage | 400VAC(-15% to +10%)3-phase |
| OTHER SPECIFICATIONS | |
| Operating Temperature | +10 to +40C |
| Storage Temperature | -10to+60C |
| Humidity | 10 to 85% |
| Cooling Method | Water Cooling |
| Cooling Medium | Distilled water/ Glycol Antifreeze |
| Dimension | 482.6X950X193mm |
| Weight | 80(±3) kg |
| model | MFSC-3000X |
| OPTICAL SPECIFICATIONS | |
| Nominal Power | 3000W |
| Mode of Operation | CW/Modulated |
| Polarization | Random |
| Power Tunability | 10 to 100 % |
| Wavelength | 1080±10 nm |
| Power Stability | ±1% |
| Laser Beam Quality, BPP | 1.1 to 1.5 mm x mrad(50um OBH) |
| 2.8 to 3.6 mm x mrad(100um OBH) | |
| Modulation Frequency | <=5kHz |
| Preview Red Light Power | 200 uW |
| FIBER DELIVERY SYSTEM | |
| Interface | QBH(LOC) |
| Length | 20 m standard, other lengths optional |
| Diameter | 50(100/200) pm |
| Bending Radius | 200 mm |
| ELECTRICAL RATINGS | |
| Supply Voltage | 400VAC(-15% to +10%)3-phase |
| OTHER SPECIFICATIONS | |
| Operating Temperature | +10 to +40C |
| Storage Temperature | -10to+60C |
| Humidity | 10 to 85% |
| Cooling Method | Water Cooling |
| Cooling Medium | Distilled water/ Glycol Antifreeze |
| Dimension | 482.6X950X193mm |
| Weight | 80(±3) kg |
