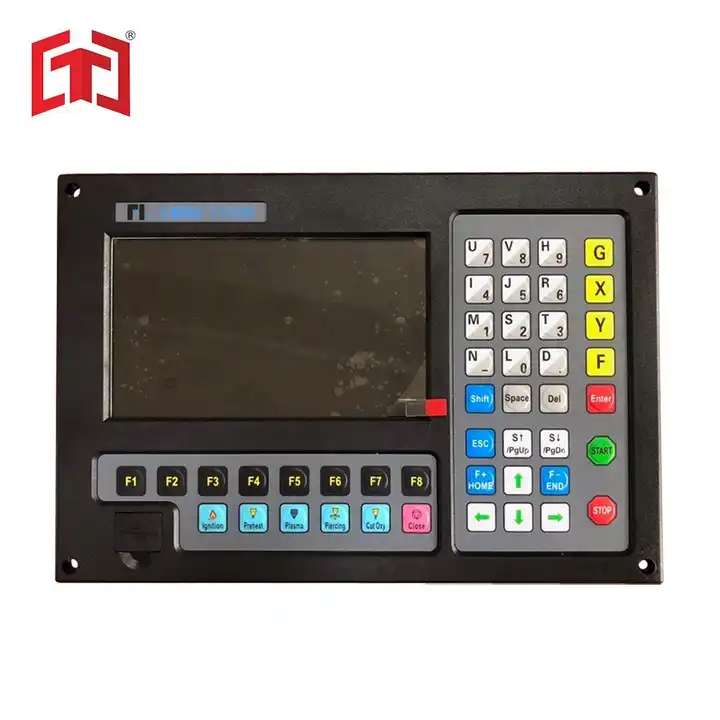

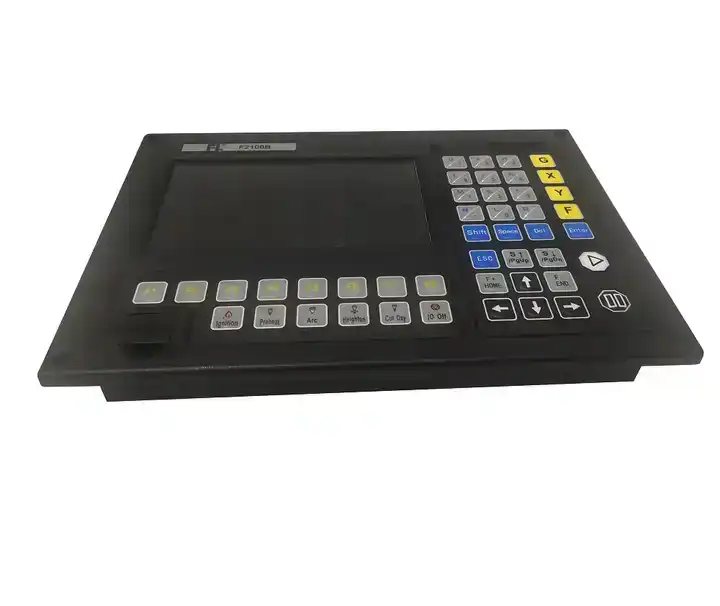

Fangling Plasma CNC Controller F2100B 3 Axis Landscape Screen

Fangling F2100B CNC controller is a new product, absorbing the advantages of many CNC controller, which is more user-friendly, more convenient and more cost-effective. The controller can control the motion of 2 axes, which is apt to the application of flame, plasma or laser cutting.

Model:
F2100B
Brand:
Fangling

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

The controller high performance ARM chip and ultra large scale programmable device FPGA, runs multi task real-time operating system and adopts the method of combining software interpolation with hardware interpolation, making high-speed operation more stable and reliable. Reflect speed is very fast.

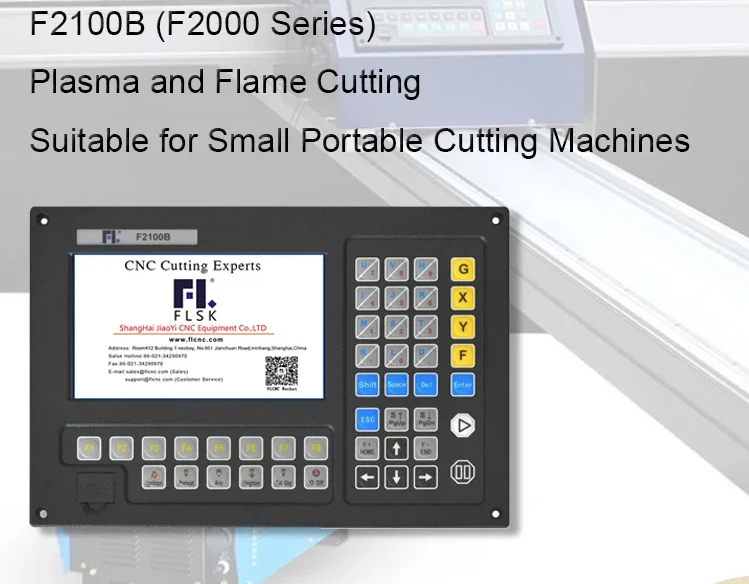

f2100by

Technical Parameter

Basic Parameters/ Hardware Configuration

MCU	ARM9
Number of axis motion	Two axes motion interpolation (can be extended to three axes)
Max code lines	150,000 lines
Single cutting code size	4MB
File memory space	Electronic bulk memory chip, 512MB
User file memory space	256MB
Controlling accuracy	±0.001mm (millimeter)
Coordinate range	± 99999.99mm
Max pulse frequency	250KHz;Max motion speed:25m/sec.
System power	DC +24V
ime resolving capability	10ms
System working condition	Temperature :0℃ - +55℃;Relative Humidity: 0-95%.
Interface	USB
Frame	Overall metal structure, electromagnetic radiation resistant, anti interference, anti-static
Special configuration	Touch pad, 100m wireless remote controller and wire control box(optional for full range of F2000 series)
Keyboard	PCB film keyboard,PS/2 interface, OMRON button

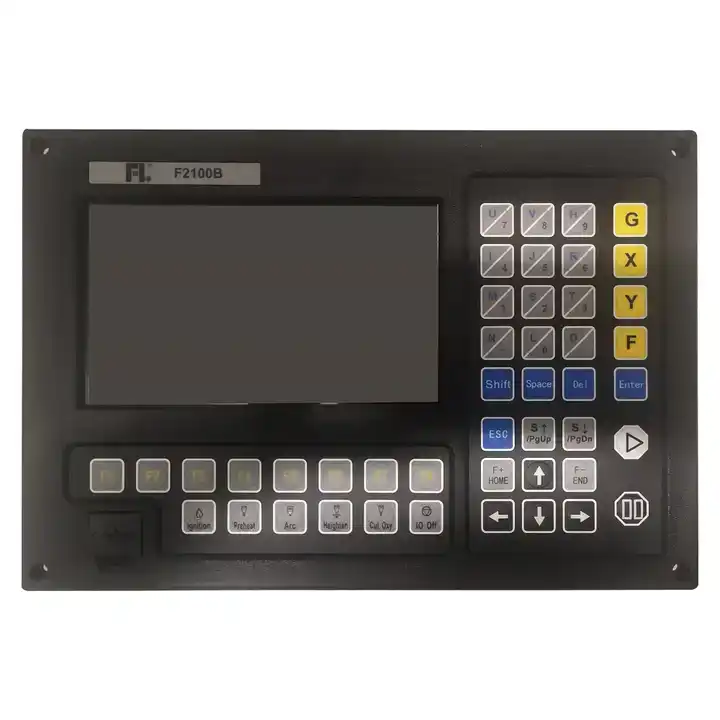

f2100bq

Product Features

1. Chinese/English/French/Portuguese/Russian/Denmark/Korean language are supported. The language can be switched easily. In addition to Chinese and English, it need customer to provide language translation documents. In addition to Arabic, other languages are all available.

2. System can be upgrade by USB. Lifetime Software upgrade service.

3. Support CAN bus connection.

4. Cutting technique parameters library.

5. Support Multi-stations(Multiple THC and its panel) configuration.

6. Support Laser pointing function.

7. Support Plasma cutting dynamic perforation function.

8. Process workpieces, Running time and perforation times statistics.

9.Support Edge cutting, lesser preheat time for thick plate.

10. Corner limit speed depends on the thickness of the plate, prevent overburn.

11. The view for cutting shape, zoom in/out, easy to track the cutting cursor.

12. Blackout, breakpoint memory function.

13. "Offset cutting" function can prevent the waste of the workpiece when miscalculation happened.
