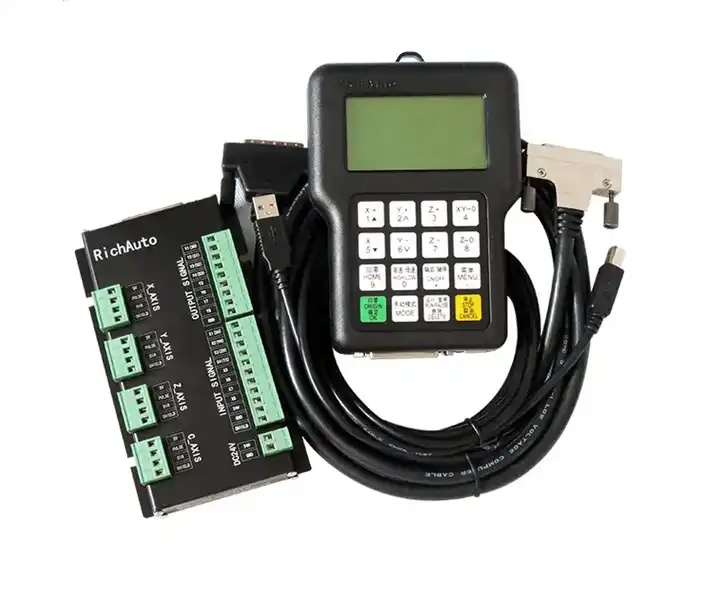

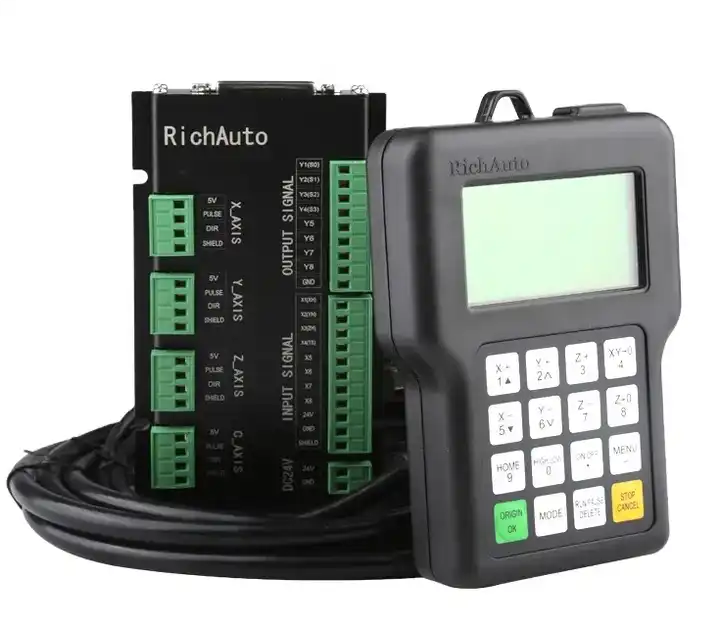

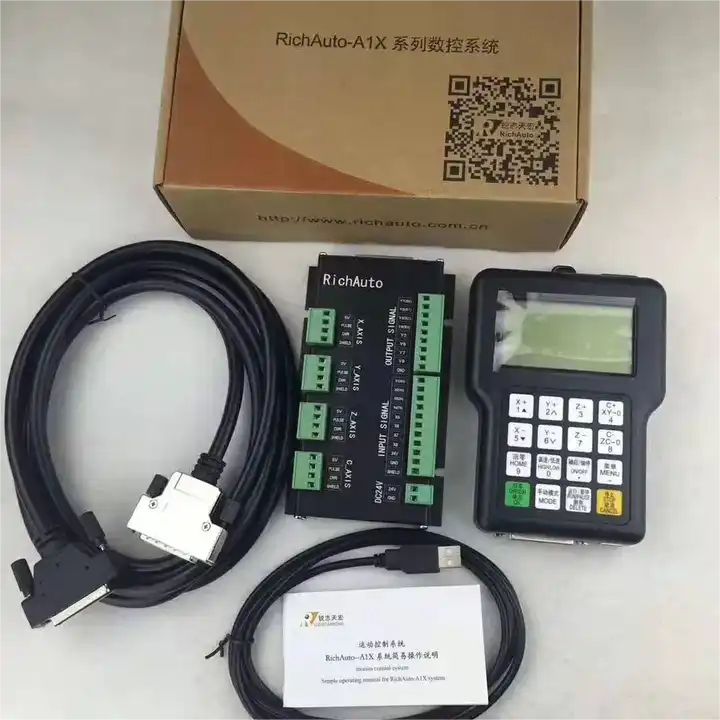

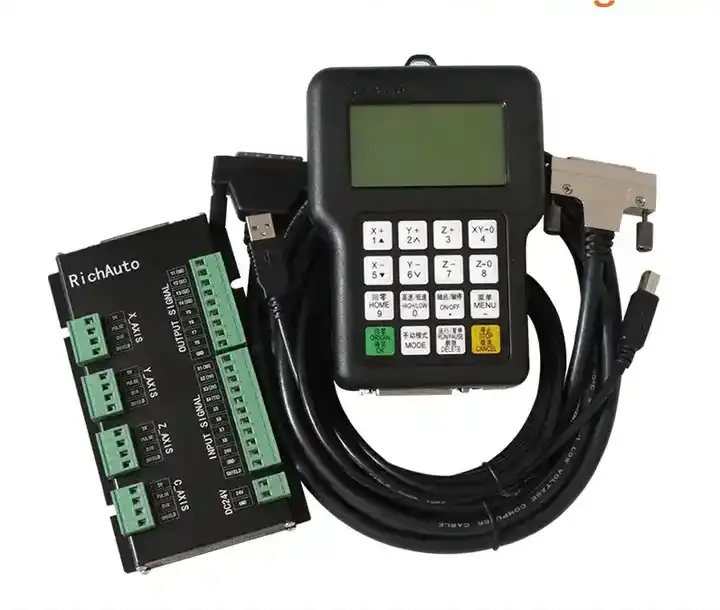

A11
RichAuto
| Quantity: | |
|---|---|
Product Description
1. Use of this product is strictly prohibited in the strong interference, strong magnetic field environment. Operating ambient temperature 0-70 C, working environment humidity 0-90% (non-condensing).

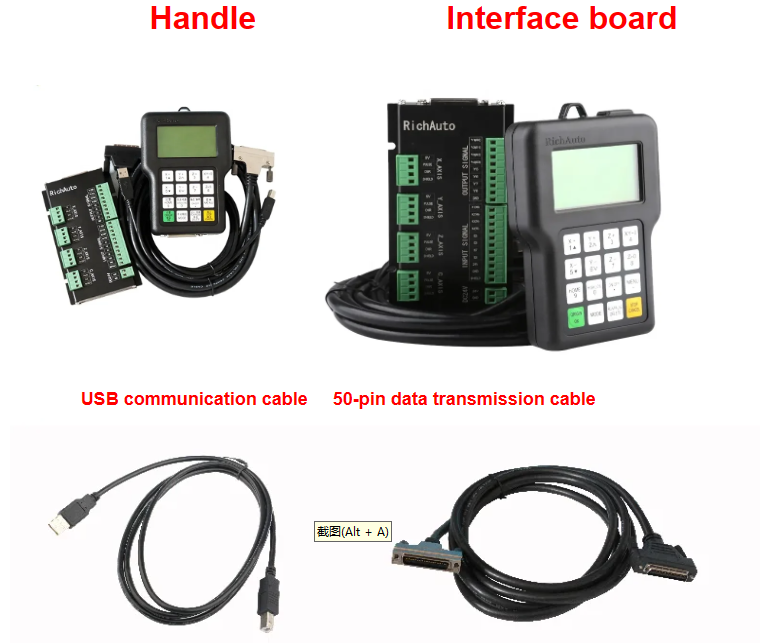

2. Insert U disk in the correct direction. Do not pull out 50-pin cable when system run.
3. During processing U disk file process, do not pull out the U disk to prevent the interruption of data transmission.
4. Strictly prohibited metal, dust, and other conductive substances enter the controller.
5. The machine shell should connect the ground wire to ensure the safety of the work and to prevent interference.
6.Prohibited unauthorized disassembly, no user-repairable parts..
7. Unused for long periods of time, please pay attention to the power outage, and keep properly.
8. Pay attention to water, dust, fire when using it.
9. Do not use the corrosive chemical solvents to clean the equipment.10. Spindle motor bearing life and its speed is inversely proportional.
11. Graver is very sharp. Do not touch when it is running in order to avoid injury; Do not use handkerchiefs, scarves to touch it to prevent embroiled damage.
Product technical parameters
| Product number | RichAuto DSP A11 |
| processor | DSP |
| Built-in memory | 512MB |
| Display screen | Three-inch monochrome screen |
| Communication port | U Disk |
| Number of linkage axes | 3 axis |
| control signal | Differential signal |
| Drive System | Stepper/Servo Motor |
| Minimum input unit | 0.001mm |
| Power failure protection function | stand by |
| Breakpoint processing function | stand by |
| External power supply voltage | 24VDC |
| Manual mode | Continuous, jog, distance |
| Interpolation method | Straight line, arc |
| Maximum pulse frequency | 1MHz |
product detail
RichAuto control system provide two modes of buttons' operation,including one-touch button & Combination button.
One-touch button: Press one button on handle.
Combination button: Press two buttons at the same time to achieve the operation;
theoperation step: press one main function button and meanwhile press a second accessibility button,and then release the two buttons at the same time to realize the combination button operation.
