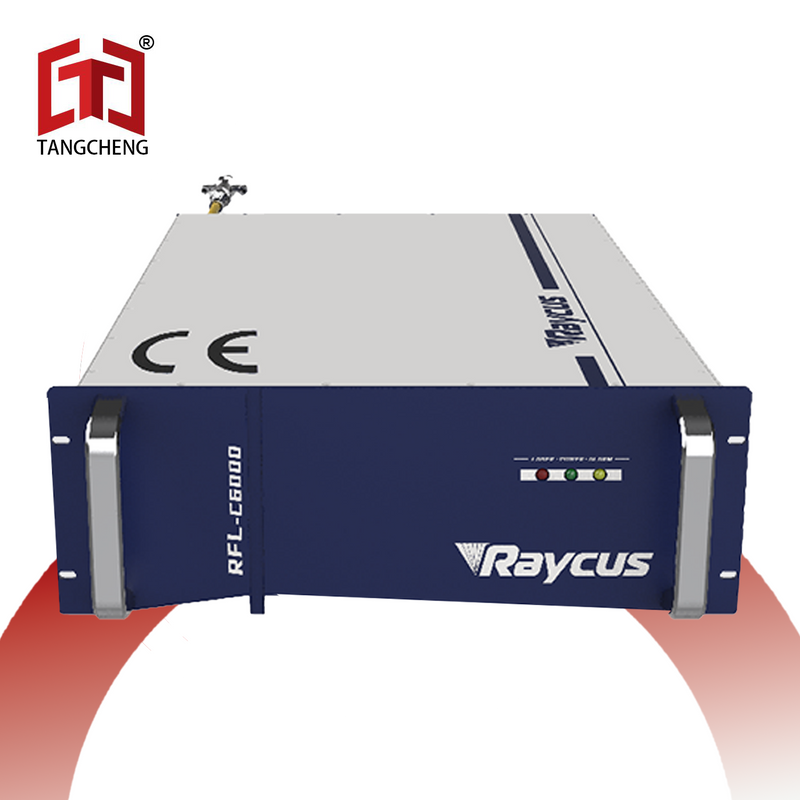

RAYCUS Fiber Laser Source RFL -C6000S

RFL‑C6000S‑CE is Raycus Global‑Series 6000 W single‑module continuous‑wave fiber laser source. Designed for heavy‑duty industrial metal processing, it delivers high electro‑optical efficiency, stable beam performance and wide modulation capability. Water‑cooled compact cabinet, maintenance‑free running, QBH fiber output, easy integration for laser cutting machines, automated welding stations, cladding, surface treatment and metal 3D‑printing equipment.

Model:
RFL-C6000S
Brand:
Raycus

Availability:

Quantity:



Inquire Add to Basket

Product Description

Main Features

Stable power output, power instability ≤±1.5%.
Power adjustable from 10‑100%, max modulation frequency 20 kHz; support slow‑rise / slow‑fall and waveform editing.
High electro‑optical conversion efficiency, low energy consumption for long‑time heavy‑load industrial operation
Built‑in red aiming light (0.5‑1 mW) for positioning.

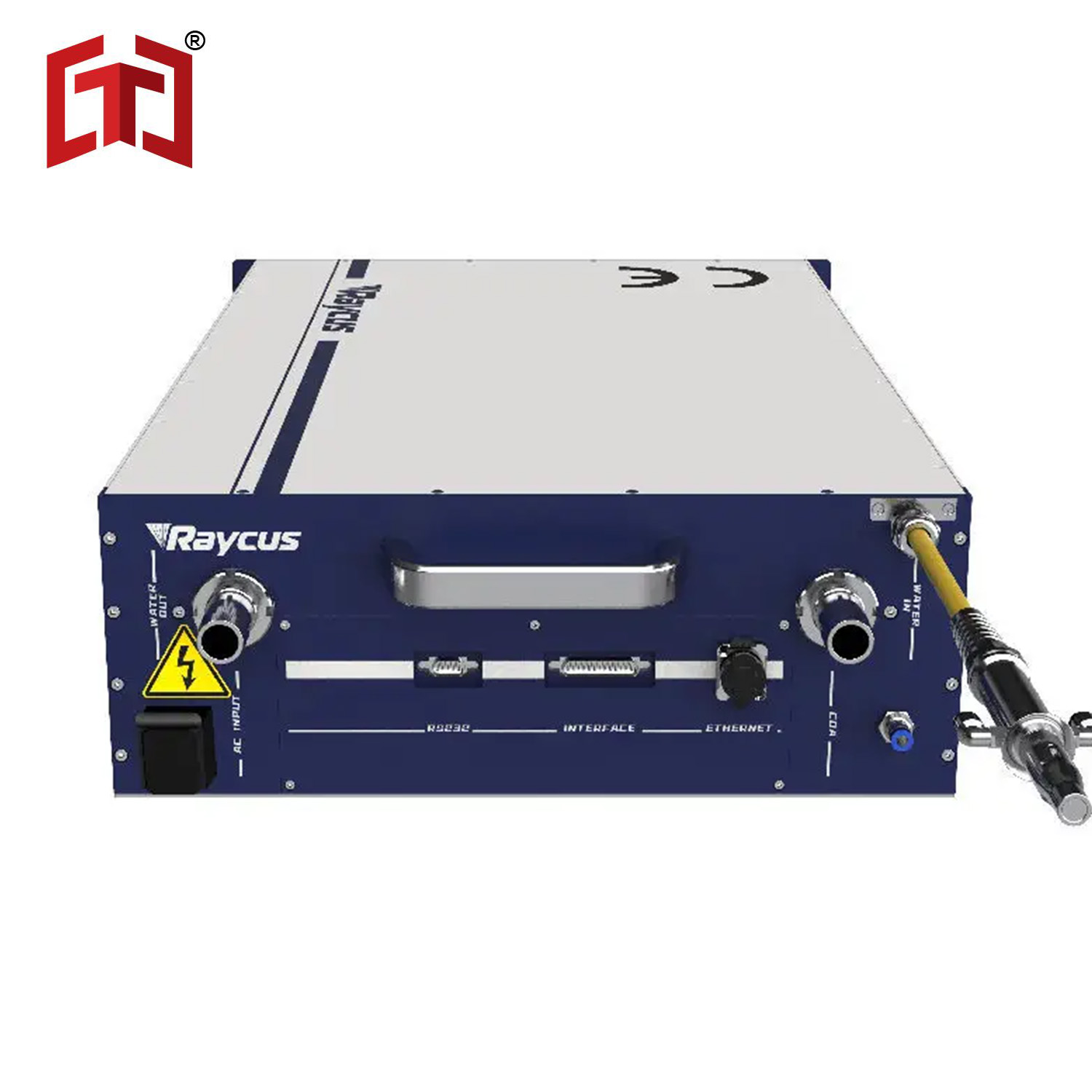

Multiple control interfaces: AD analog, RS‑232, Ethernet; standard QBH output connector; fiber core & delivery fiber length customizable.
Water‑cooled cabinet; CE & RoHS certified, Class 4 laser safety standard.

Item	RFL‑C6000S‑CE
Rated Output Power	6000 W
Central Wavelength
Power Adjustment Range	10‑100%
Max Modulation Frequency	20 kHz
Standard Fiber Core	50‑75 μm (customizable)
BPP	2.7‑3.1 mm·mrad
Output Connector	QBH (customizable)
Standard Delivery Fiber	20 m (customizable)
