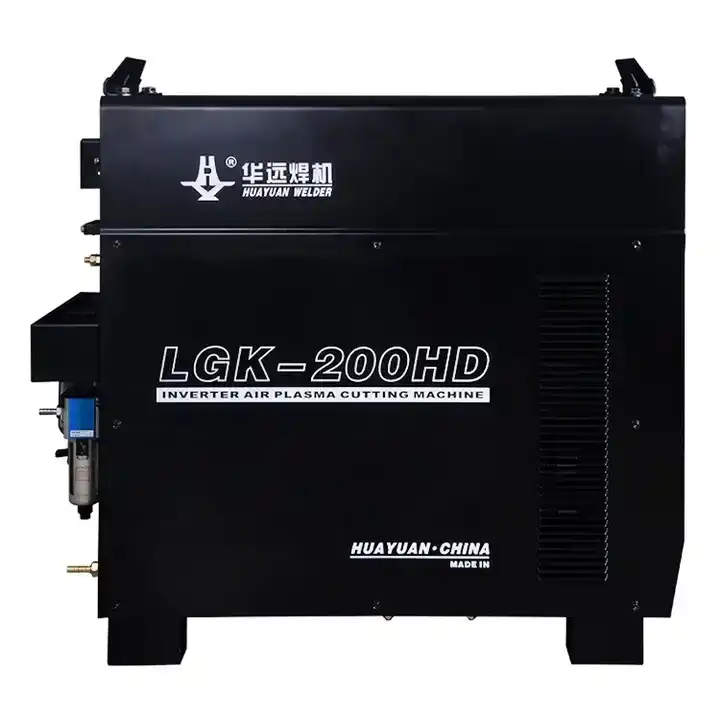

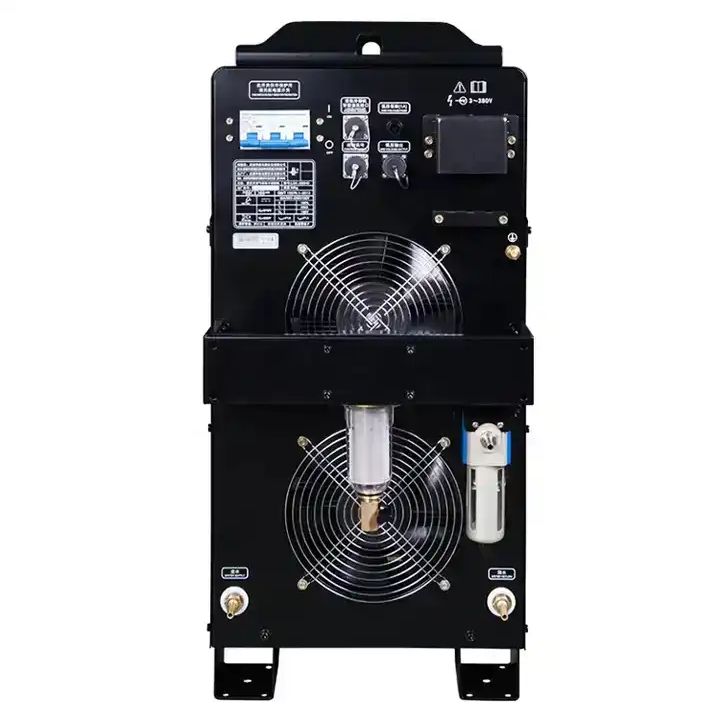

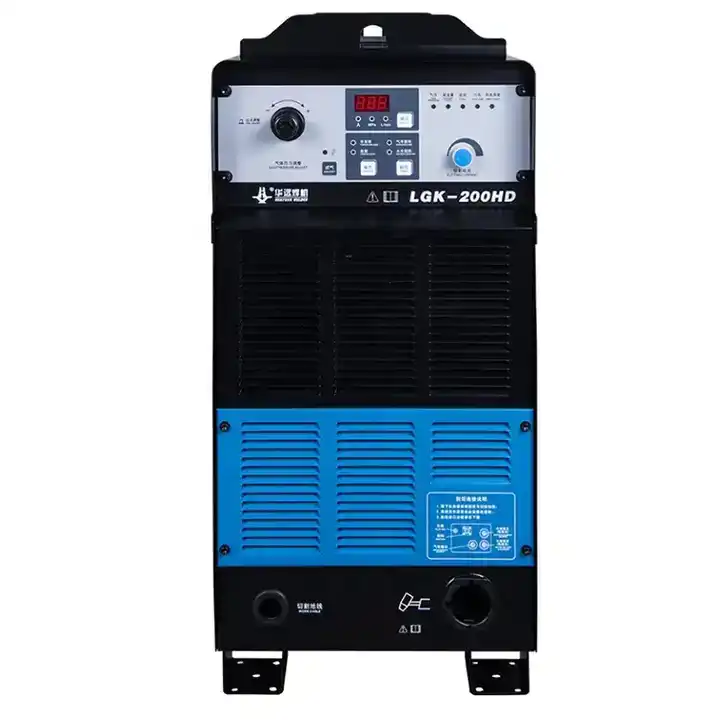

LGK-200HD
HUAYUAN
| Quantity: | |
|---|---|
Product technical parameters
| entry name | model |
| plasma power | LGK-200HD |
| Input power supply | 3-380V+15% 50~60hz |
| Rated input passenger volume | 46.5KVA |
| input current | 70.9A |
| output current | 200A |
| rated output voltage | 160V |
| Rated No-Load Voltage | 360V |
| Rated Duty Cycle | 100%(40°C) |
| efficiency | 92% |
| Power factor | 0.78 |
| Output current regulation range | 40~200A |
| Arc voltage output signal proportion | 1:1 /1:20/1:50/1:100 System default 1:1 |
| Quality cutting ability, (carbon steel) | 32 (500mm/min) |
| Cutting capacity (carbon steel) | 45 (280mm/min) |
| Handheld cutting capacity (carbon steel) | 65mm |
| plasma gas | compressed air |
| Air supply capacity | 0.5-0.8Mpa |
| Working flow rate of coolant | - |
| Cutting gun cooling method | Air cooled |
| Arc striking method | Non-contact arc striking |
| Power cooling method | forced air cooling |
| Insulation level | Class F |
| Shell protection level | IP21S |
| Overall dimensions (length x width x height) | 863*385*800mm |
| Net weight of power supply | 86kg |
Product Features
1. Life monitoring of cutting torch consumables
2. Gas pressure and coolant flow display, detection, alarm, and control
3. Independent setting of early air supply and delayed air cut-off time
4. Automatic protection for overheating and undervoltage
5. Automatically display fault codes in case of abnormalities
6. Using intelligent fans to reduce dust accumulation inside the machine
7. LGK-120HD has the function of cutting mesh materials, which is suitable for cutting various forms of mesh workpieces
Product Application
Widely used in industries related to metal cutting, such as industrial power plant installation, boiler pressure vessels, metallurgy, petrochemical, aerospace, shipbuilding, engineering machinery, steel structure manufacturing, etc
