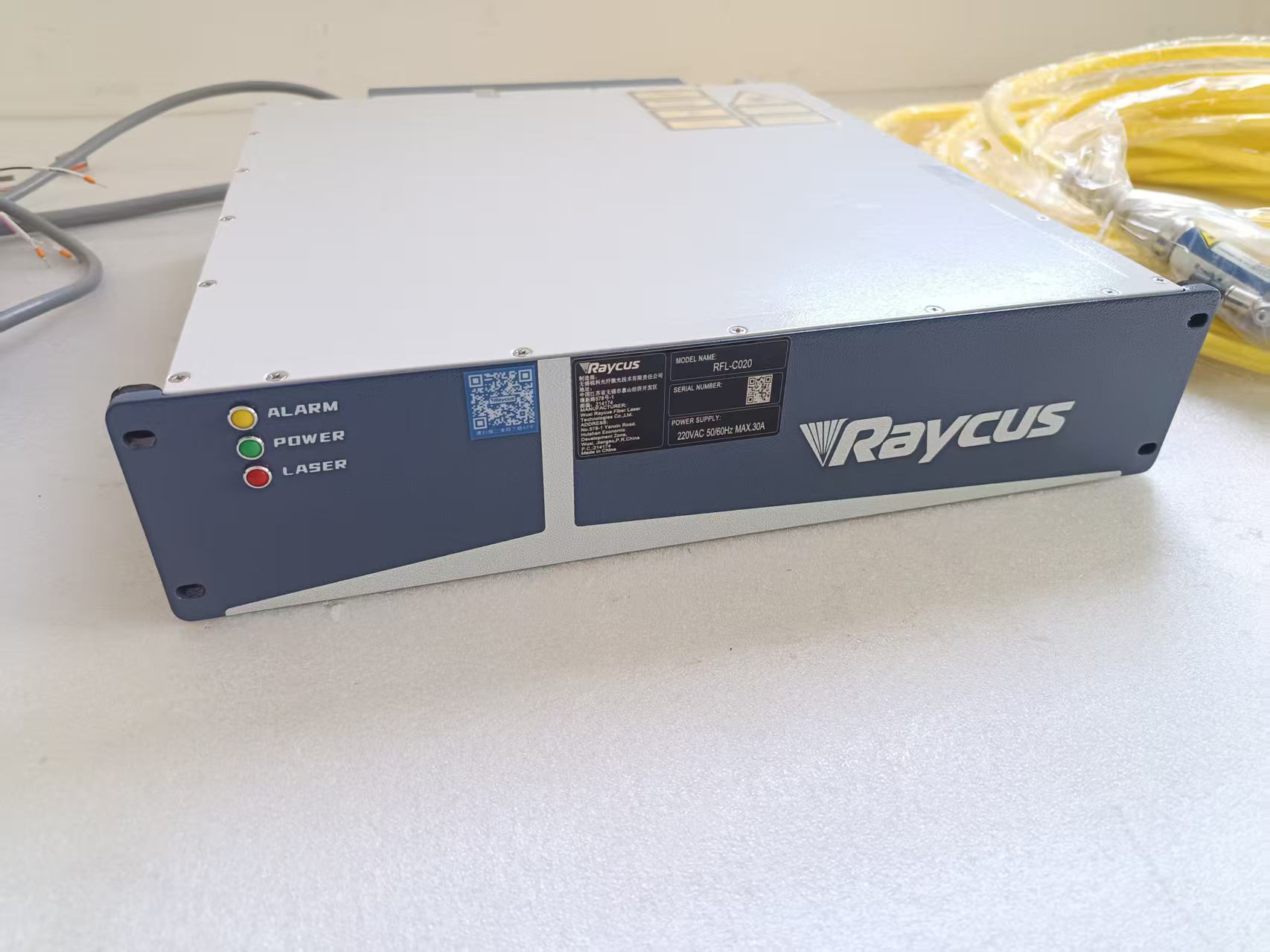

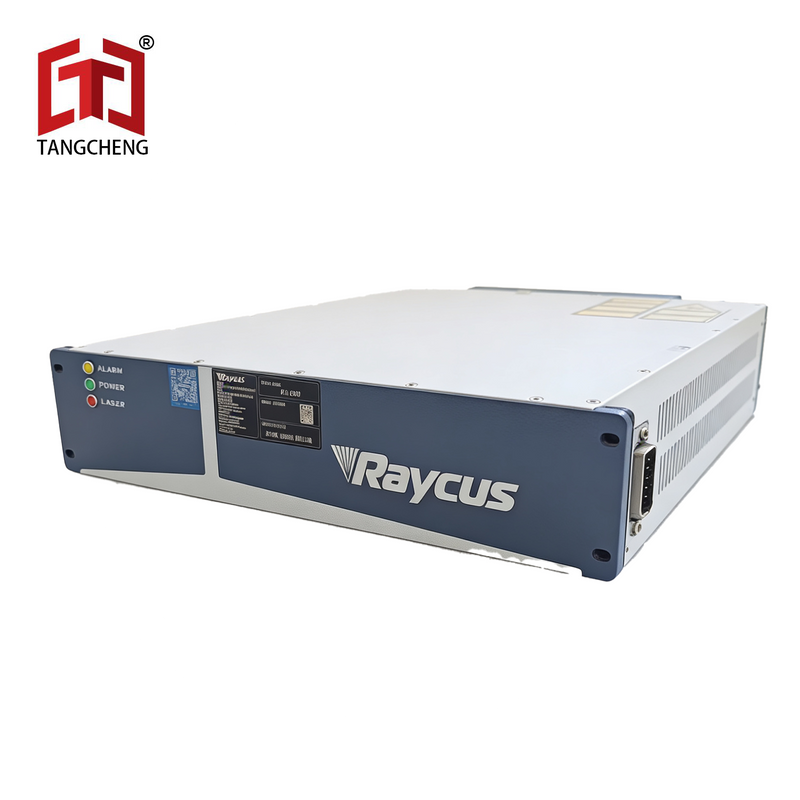

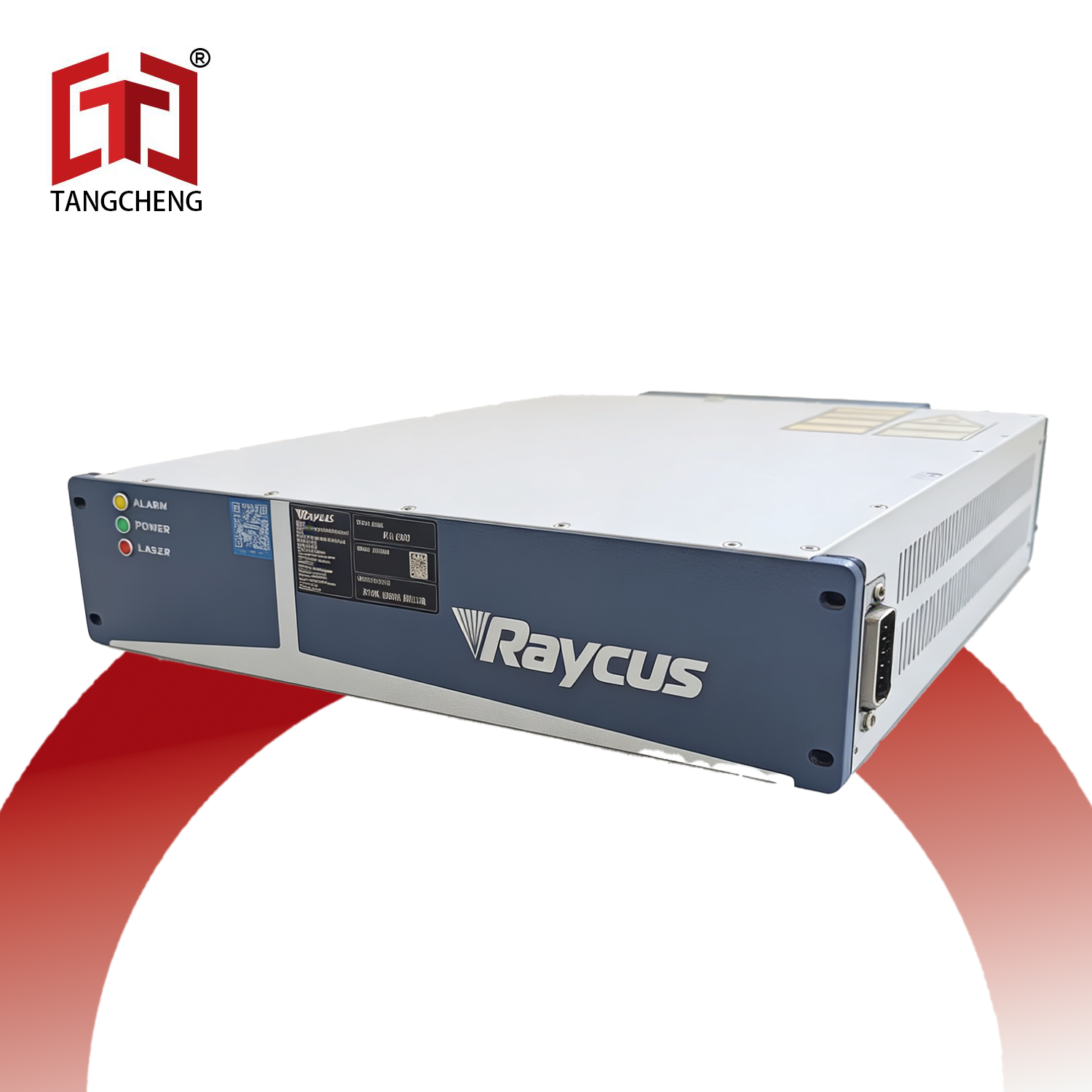

RFL-C020,RFL-C020H,RFL-C020-CE
Raycus
| Quantity: | |
|---|---|
Excellent beam quality, stable power output, power instability ＜ ±1%武汉锐科光...
1‑100% continuously adjustable power, max modulation frequency 5000 Hz; support slow‑rise / slow‑fall and waveform editingWuhan Rayc...
High electro‑optical conversion efficiency ＞33%, low energy consumption for long‑time industrial operationAlibaba.co...
Built‑in red aiming light (0.5‑1 mW) for positioning武汉锐科光...

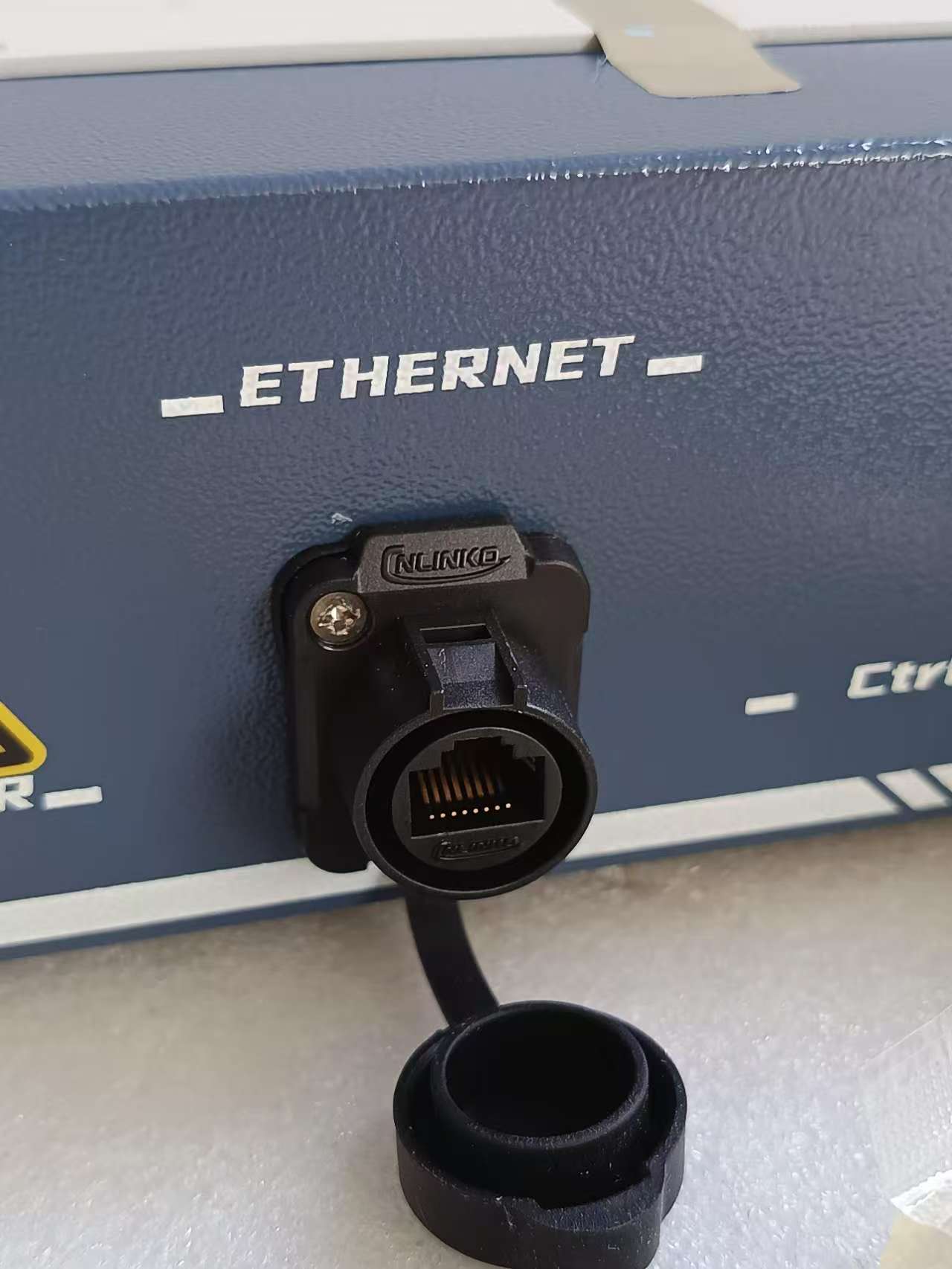

Multiple control options: AD analog, RS‑232, Ethernet, Bluetooth. QBH / IQB output connector; delivery fiber length customizable
Compact water‑cooled housing; CE, RoHS certified, Class 4 laser safety standard.

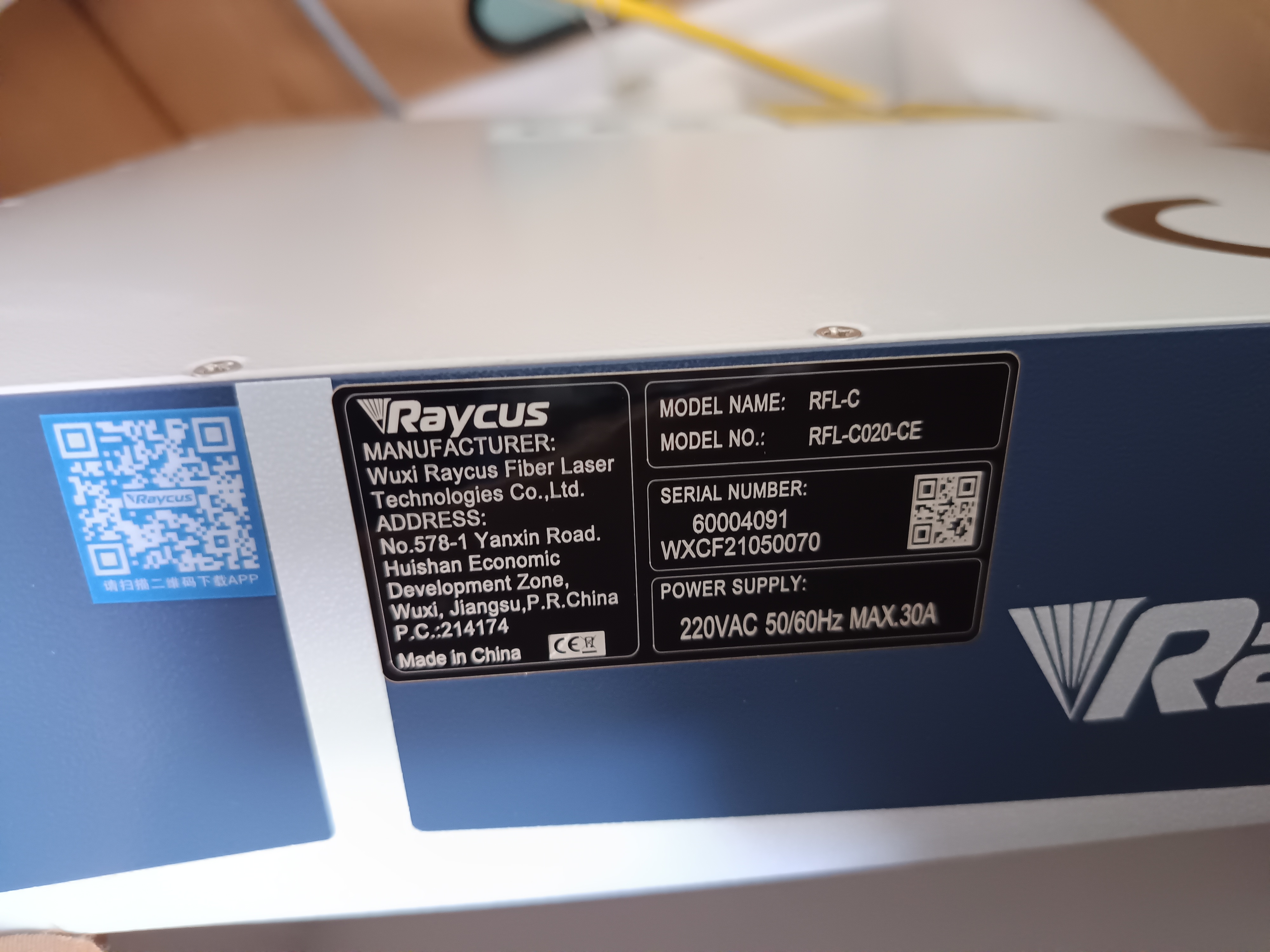

Item | RFL‑C020‑CE (Cutting) | RFL‑C020H‑CE (Welding) |
|---|---|---|
Rated Output Power | 1500 W | 1500 W |
Central Wavelength | 1080±5 nm | 1080±5 nm |
Power Adjustment Range | 1‑100% | 1‑100% |
Max Modulation Frequency | 5000 Hz | 5000 Hz |
Standard Fiber Core | 50 μm(14/25/100/200 μm optional) | 25 μm |
M² Beam Quality | 2‑6 | ≤1.8 |
Output Connector | QBH / IQB | QBH / IQB |
Standard Delivery Fiber | 20 m | 10 m |
Input Voltage: 220 VAC ±10%, 50/60 Hz, single‑phaseWuhan Rayc...
Cooling Mode: Water cooling
Dimension(W×D×H): 340 × 390 × 80 mm
Operating Ambient: 10‑40 ℃, 30‑70%RH, non‑condensation
