MK-230-QKFY-51-204-110/ MK-230-HK-28-84-090
TC
| Quantity: | |
|---|---|
product description

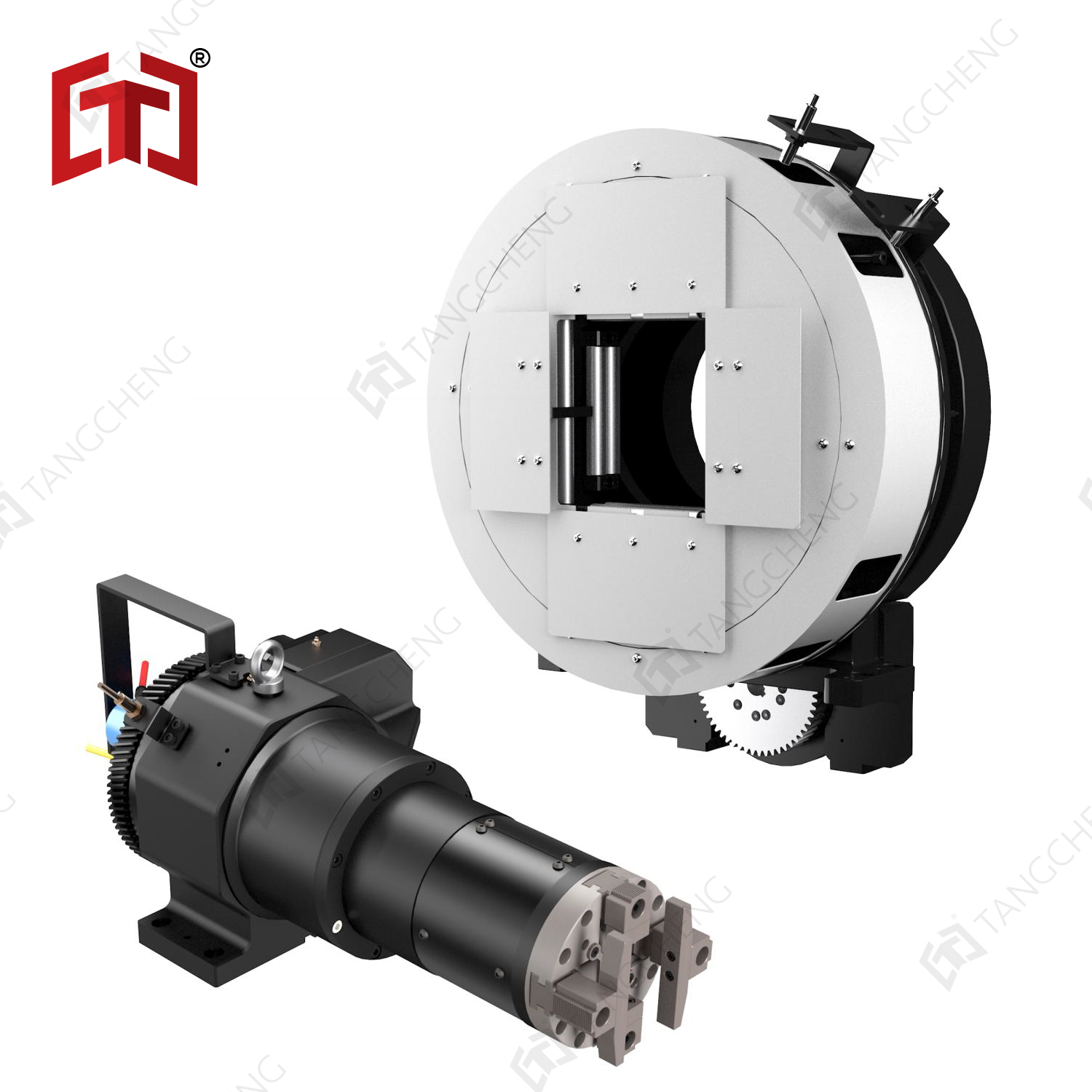

230 square meter front and rear card LASER CHUCK.
Front chuck: MK-230-QKFY-51-204-110
Rear chuck: MK-230-HK-28-84-090
Round tube: φ 15- φ 230
Square radius: 230 * 230
The circumcircle is less than φ 230
Special profiles cannot exceed the length of the claw
Product parameters

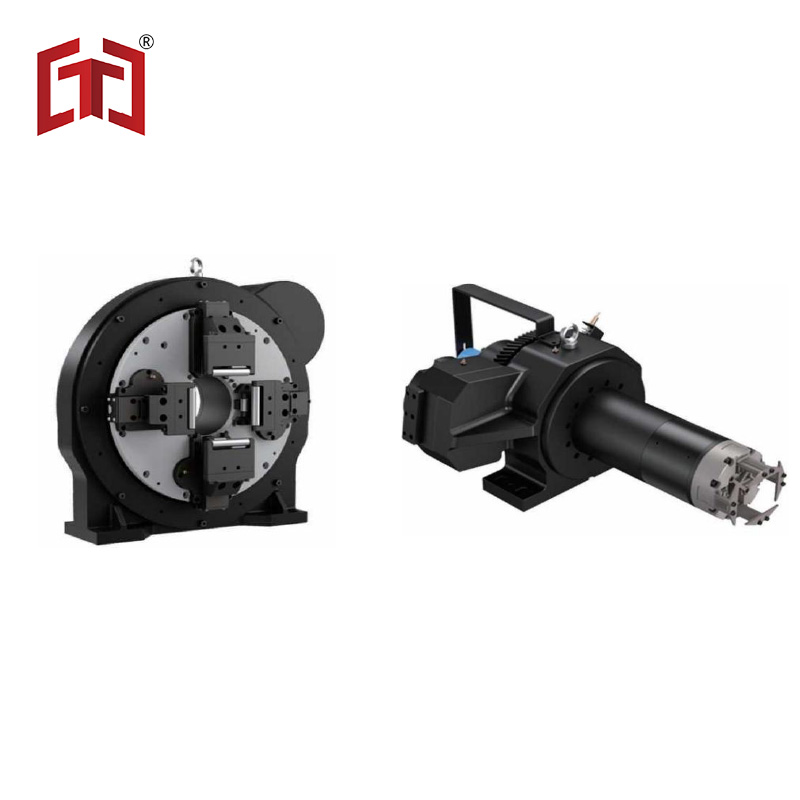

| 220 round hole precision front and rear chuck | KDN-220-QK-54-162-110-V1 KDN-220-HK-28-84-090-V1 | Round tube: φ 8- φ 220, square tube: 160x160; I-beam/channel steel ≤ 14 #, angle steel ≤ 12 #; Outer circle < φ 220; Special profiles cannot exceed the length of the claw; The above standard claw range exceeds the limit for adding fixed claws |
| 230 round hole precision front and rear chuck | MK-230-QK-57-228-110-V1 MK-230-HK-28-84-090-V1 | Round tube: 15-230, square tube: 160x160; I-beam/channel steel ≤ 15 #, angle steel ≤ 12 #; Outer circle < φ 230; Special profiles cannot exceed the length of the claw; The above standard claw range exceeds the limit for adding fixed claws |
| 230 square front and rear chucks | MK-230-QKFY-51-204-110-V1 MK-230-HK-28-84-090-V1 | Round tube: φ 15- φ 230, square tube: 230x230; I-beam/channel steel ≤ 15 #, angle steel ≤ 12 #; Outer circle < 230x230; Special profiles cannot exceed the length of the claw; The above standard claw range exceeds the limit for adding fixed claws |
