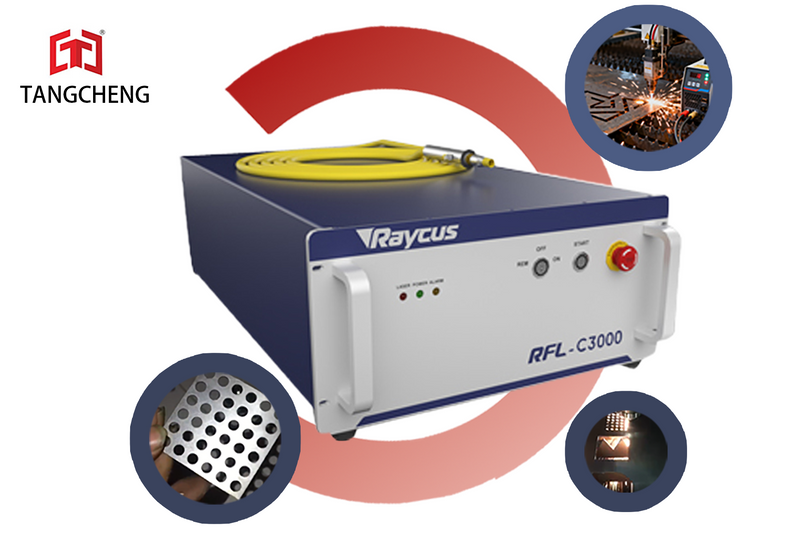

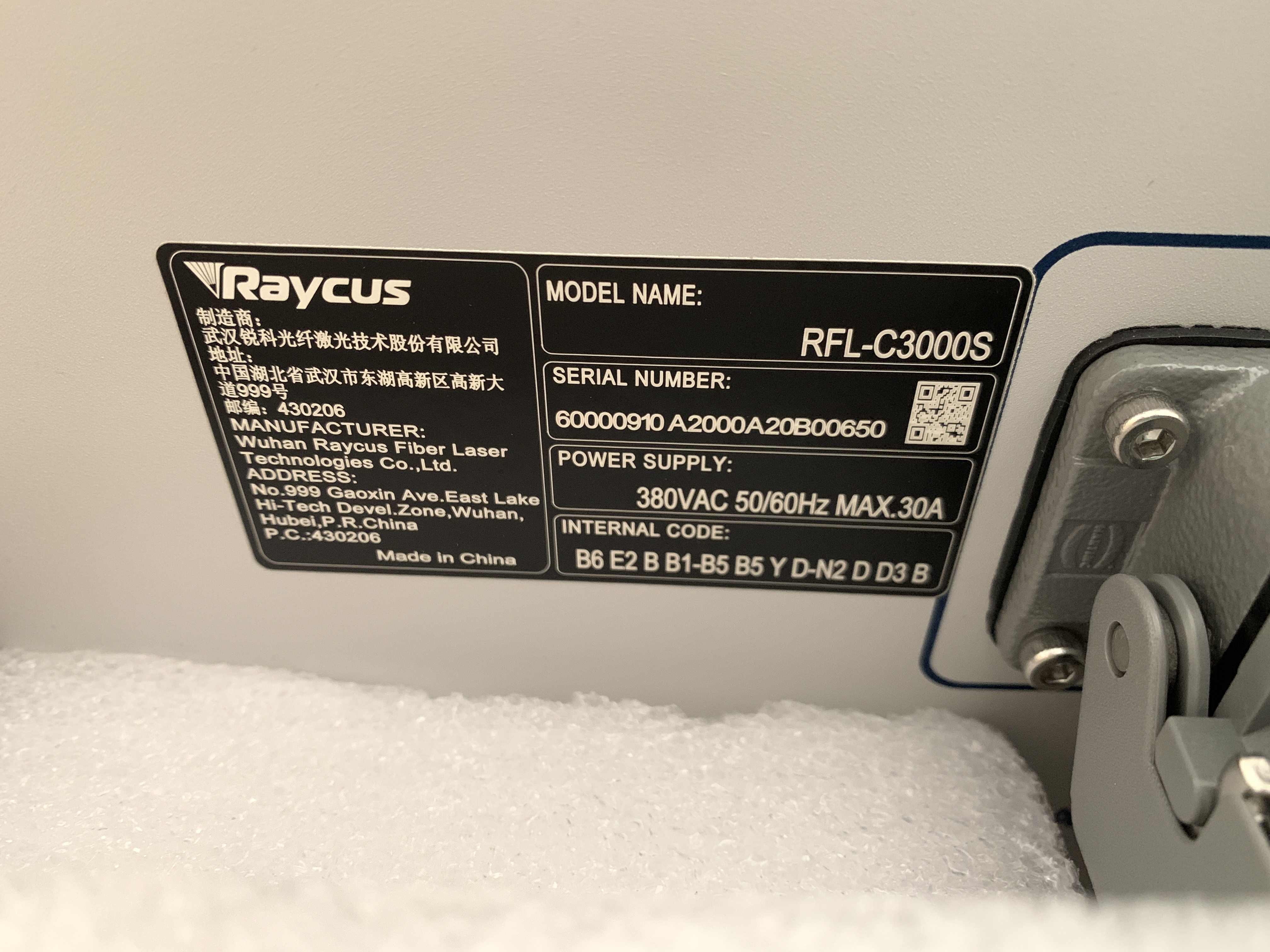

RFL-C3000S,RFL-C3000S-CE
Raycus
| Quantity: | |
|---|---|
Stable power output, power instability ≤±1.5%武汉锐科光...
Power adjustable 10‑100%, max modulation frequency 5000 Hz, support slow‑rise / slow‑fall control
High electro‑optical conversion efficiency, low energy consumption for long‑time heavy‑load industrial operation
Built‑in red aiming light (0.5‑1 mW) for positioning
Multiple control interfaces: AD analog, RS‑232, Ethernet; QBH output connector, delivery fiber length & core diameter customizableYUPEC Lase...
Water‑cooled structure; CE, RoHS certified, Class 4 laser safety standard.
Item | RFL‑C3000S‑CE |
|---|---|
Rated Output Power | 3000 W |
Central Wavelength | 1080±5 nm |
Power Adjustment Range | 10‑100% |
Max Modulation Frequency | 5000 Hz |
Standard Fiber Core | 50 μm (optional other core size) |
BPP | 1.4‑2 mm·mrad |
Output Connector | QBH |
Standard Delivery Fiber | 20 m (customizable) |
Input Voltage: 380 VAC ±10%, 50/60 Hz, three‑phase four‑wire武汉锐科光...
Cooling Mode: Water cooling
Dimension(W×D×H): 485 × 736 × 163.5 mm (with handles)武汉锐科光...
Weight: ＜40 kg
Operating Ambient: 10‑40 ℃, 30‑70%RH, non‑condensation
Medium‑thickness metal cutting: carbon steel, stainless steel, alloy steel
Automated metal welding, robot welding stations
Metal cladding, surface heat treatment
Metal 3D printing, industrial research & development
