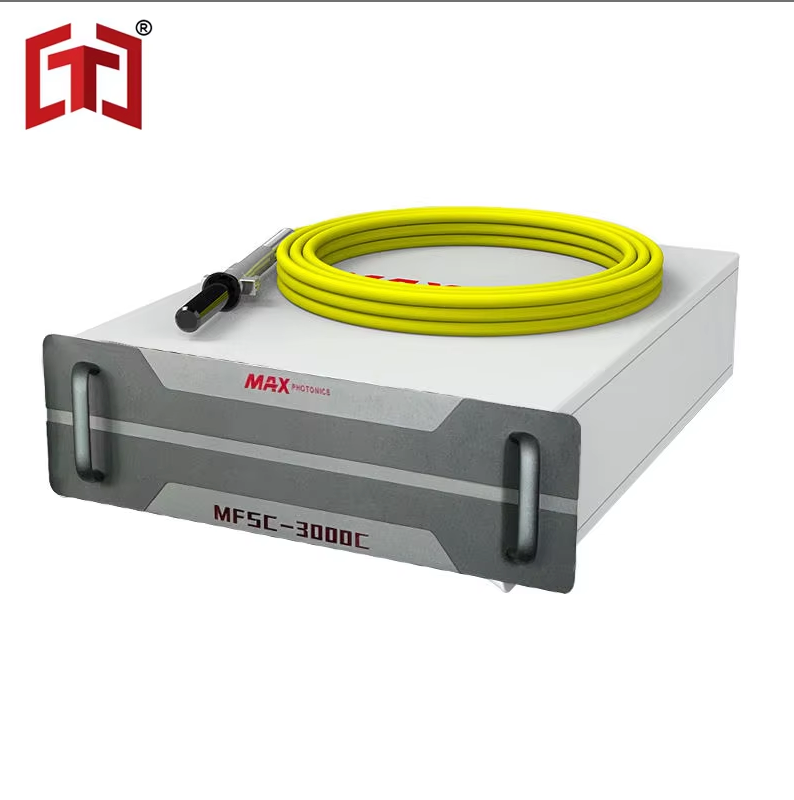

MFSC-3000C
| Quantity: | |
|---|---|
3000W RATED CONTINUOUS OUTPUT, SUPPORTS CONTINUOUS CW AND MODULATED PULSE OPERATION. ADJUSTABLE POWER RANGE: 10‑100%. POWER STABILITY: ±1~±2%. STRONG ANTI‑REFLECTION CAPABILITY FOR HIGH‑REFLECTIVITY MATERIALS SUCH AS COPPER AND ALUMINUM.
PHOTO‑ELECTRIC CONVERSION EFFICIENCY OVER 30% FOR LOW ENERGY CONSUMPTION. HIGHLY INTEGRATED COMPACT STRUCTURE, EASY MAINTENANCE TO REDUCE TOTAL COST OF OWNERSHIP.
STANDARD QBH OUTPUT CONNECTOR, STANDARD 50μm DELIVERY FIBER WITH 20M LENGTH. EASY FOR EQUIPMENT INTEGRATION AND RETROFIT, DIRECT REPLACEMENT FOR OLD‑GENERATION LASER SOURCES OF SAME POWER.
WATER‑COOLED COOLING SYSTEM, 380V THREE‑PHASE INDUSTRIAL POWER SUPPLY, SUITABLE FOR LONG‑TIME CONTINUOUS INDUSTRIAL PRODUCTION.
ITEM | PARAMETER |
|---|---|
RATED OUTPUT POWER | 3000W |
OPERATION MODE | CONTINUOUS CW / MODULATED PULSE |
CENTRAL WAVELENGTH | 1080±10 NM |
DELIVERY FIBER CORE DIAMETER | 50 μm (STANDARD) |

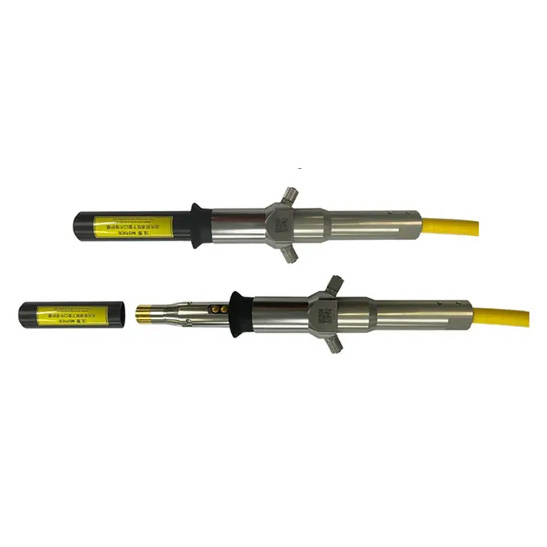

OUTPUT CONNECTOR | QBH |
MODULATION FREQUENCY | MAX. 5KHZ |
POWER SUPPLY | 360‑440V AC THREE‑PHASE |
TOTAL INPUT POWER | APPROX. 10KW |
COOLING METHOD | WATER‑COOLED |
DIMENSIONS (W×D×H) | 482.6×578×122.8 MM |
NET WEIGHT | 35.5 KG |
