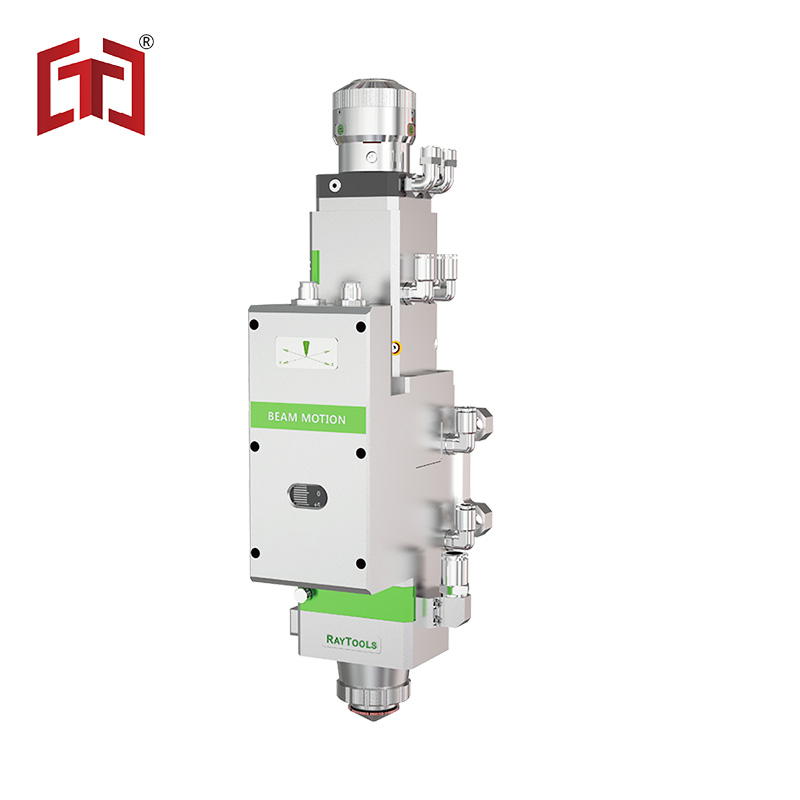

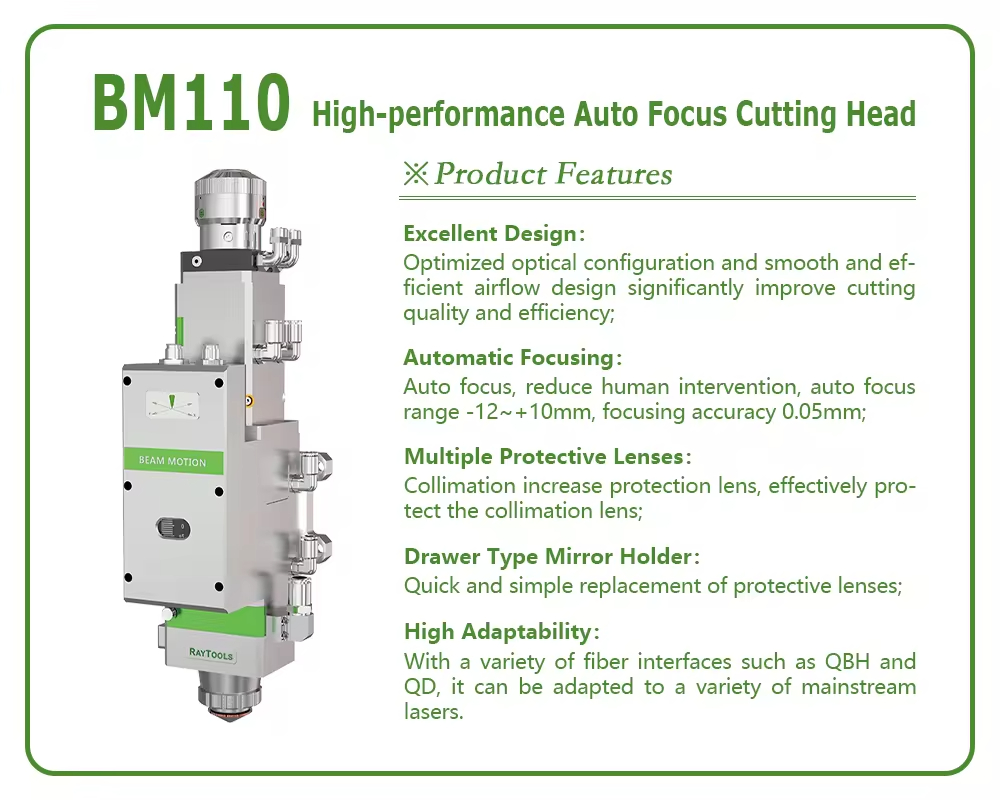

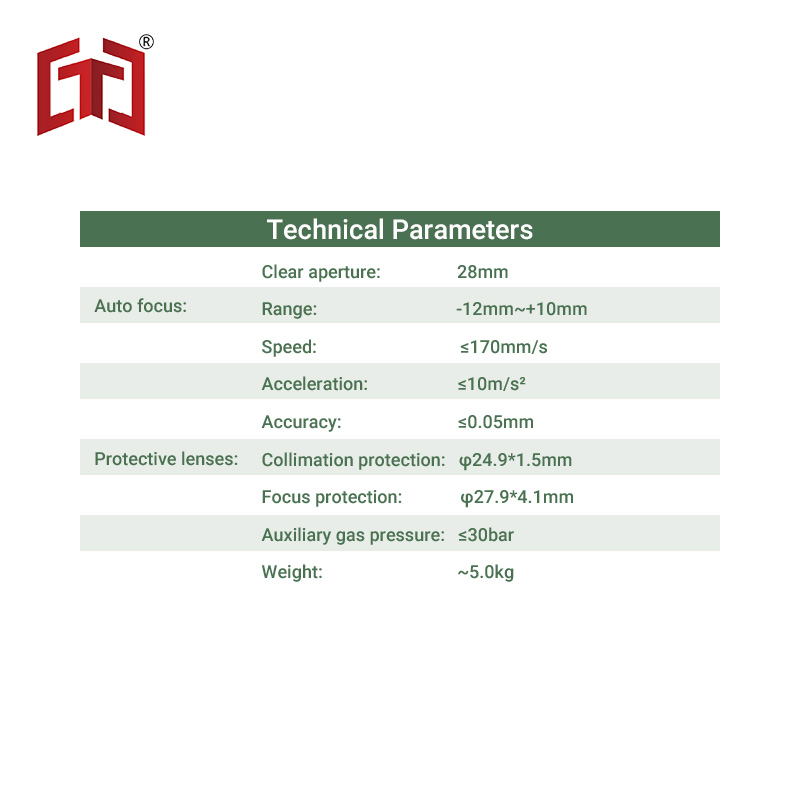

**Raytools BM110** is an auto‑focus fiber laser cutting head rated up to 3.3kW for 1064nm fiber laser machines嘉强(上海.... It features auto‑focus range ‑12mm ~ +10mm with 0.05mm high positioning accuracy, QBH fiber interface, drawer‑type protective window holder for quick lens replacementshandongcy.... Optimized airflow and dual‑water‑cooling design ensure stable cutting performance for carbon steel, stainless steel, aluminum and other metal sheets. Widely used for medium‑power metal fiber laser cutters.

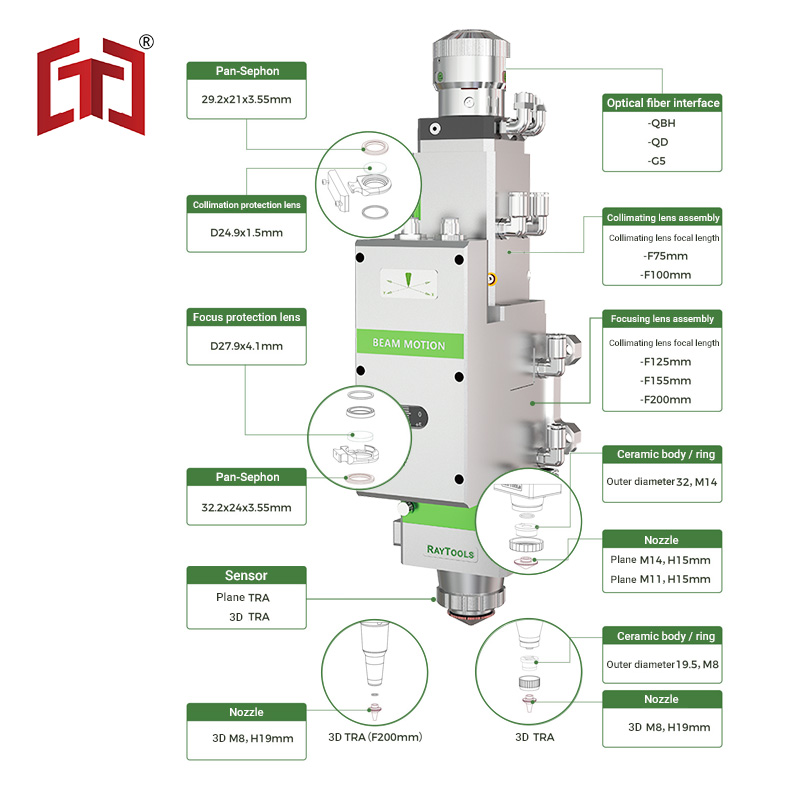

PRODUCT OVERVIEW Released by RAYTOOLS in 2018, BM110 SERIES auto focus laser cutting heads are equipped with servo motor outside and drive units inside, supporting to move focus lens within 22mm automatically through the linear mechanism. And users can set program to do continuous adjustment of the focus position, so as to perforate thick sheets and auto cut sheets with different thickness and material. BM110 SERIES products adopt D30 compound lens assembly for beam integration while applying QBH interface with fiber laser. Based on optimized optical and water-cooled design, laser heads can run stably with lower and middle power for a long time.
Tang cheng international welding &cutting supply chain established in 2014, integrating procurement, warehousing, processing, logistics, and after-sales service of all kinds of welding & cutting equipment and components.
